Reduction Ratio 13/1 Planetary Gearbox Reduction NEMA 11 Stepper Motor With ROHS

Reduction Ratio 13/1 Planetary Gearbox Reduction NEMA 11 Stepper Motor With ROHS

Brand Name:	Casun
Model Number:	28SHD4516-13GS
MOQ:	1PC
Price:	$28.75-$31.75
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Key Words:

Geared Stepper Motor

Voltage:

2.88V DC

Weight:

0.25KG

Step Angle(degrees):

1.8 Degree

Ratio:

13.73:1

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

ROHS Certified NEMA 11 Planetary Gearbox

NEMA 11 Planetary Gearbox

Product Description

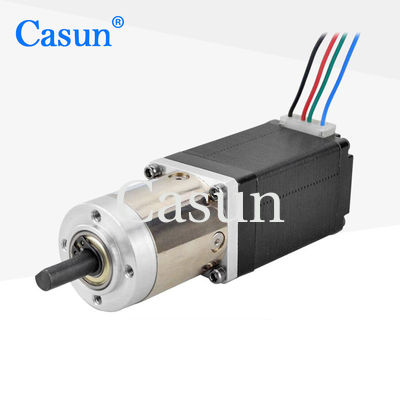

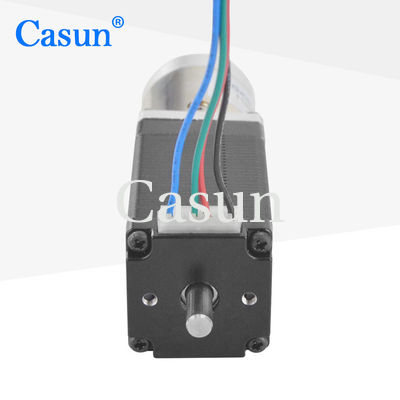

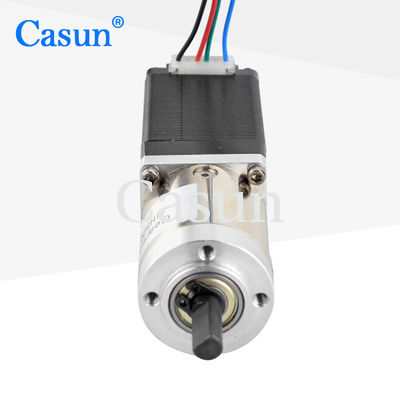

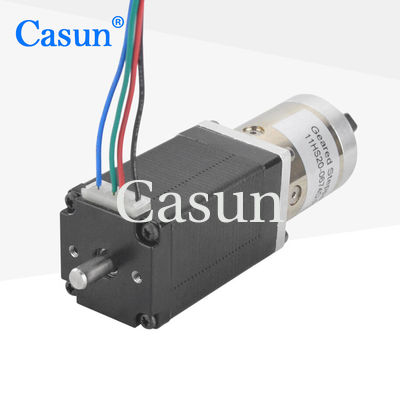

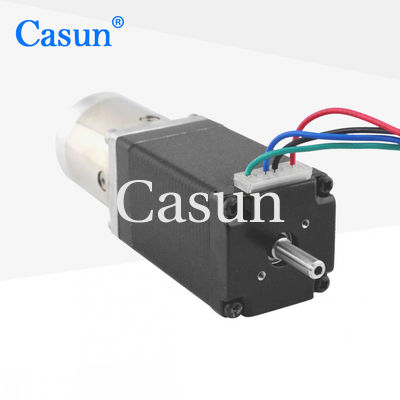

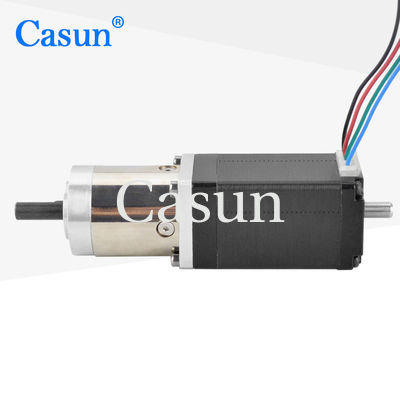

Reduction Ratio 13/1 Planetary Gearbox Reduction NEMA 11 Stepper Motor With ROHS

This planetary gearbox reduction stepper motor effectively attenuates vibration and resonance generated during high-speed operation, improving positioning accuracy and stability. Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Key Features

Complies with various global accreditations for machinery in high-tech and electronics sectors
Hybrid stepper construction
Available in single or double shaft versions
Specialist in professional drivetrain solutions
Customizations available on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42mm
Number of Phase	2 Phase
Rated Current	0.67Amp
Holding Torque	140mN.m
Resistance	12ohm
Inductance	6.5mH
Rotor Inertia	12g-cm²
Motor Weight	0.25kg
Gear Reduction Ratio	13.73:1
Connection	Bipolar

Operating Specifications

Motor

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	35 mm
48 mm		13.76
60 mm		19.2
26.8	42.7 mm	51	70%
71		99.5
139

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Encoder

Brake

Gearbox

Shaft

Get a Quote
