Home > products > Hybrid Stepper Motor > Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor

Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 28SHD4401-20B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $6.49-$9.5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

28X28mm NEMA 11 Stepper Motor

,

0.67A Two Phase Bipolar Stepper Motor

,

Casun NEMA 11 Stepper Motor

Step Angel:
1.8°
Holding Torque:
95mN.m
Current:
0.67A
Motor Length:
44.6mm
Shaft:
D Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
95mN.m
Current:
0.67A
Motor Length:
44.6mm
Shaft:
D Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

28X28x44mm 0.67A 2 Phase Bipolar 1.8 Degree Stepper Motor Nema 11 Mini Stepping Motor

The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

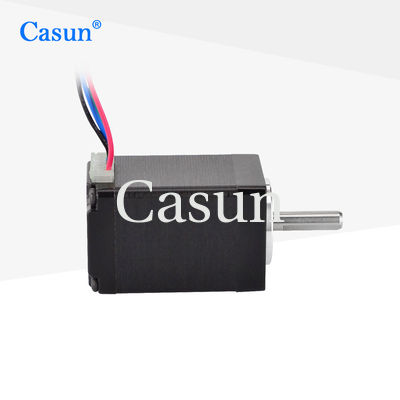

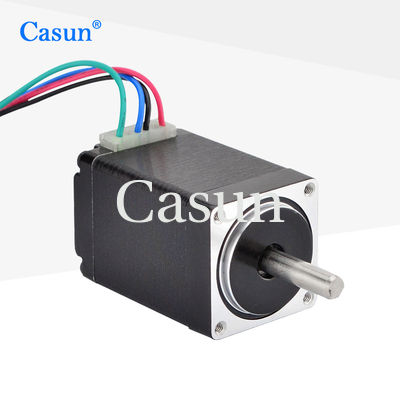

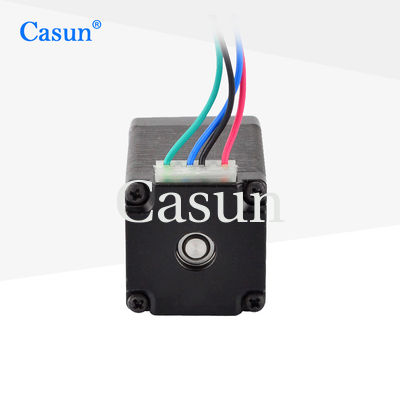

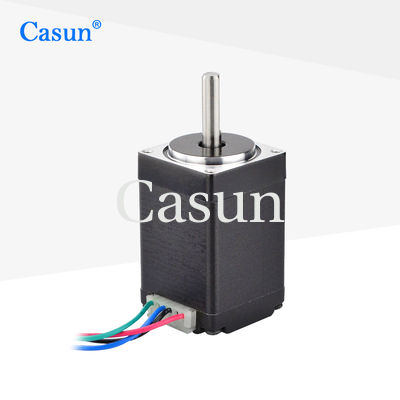

Appearance

Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor 0

Dimensions

Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor 1







Motor Specifications



Step Angel



1.8 °

Fram Size



28 mm

Number of Phase



2 Phase

Rated Current



0.6 7A

Holding Torque



95 mN.m

Resistance



6.8 ohm

Inductance



4.9 mH

Rotor Inertia



9 g-cm²

Motor weight



0.16 kg

Number of leads



4

Connection



Bipolar









Torque Curves





Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor 2













Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
