GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Hybrid Stepper Motor > 60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit

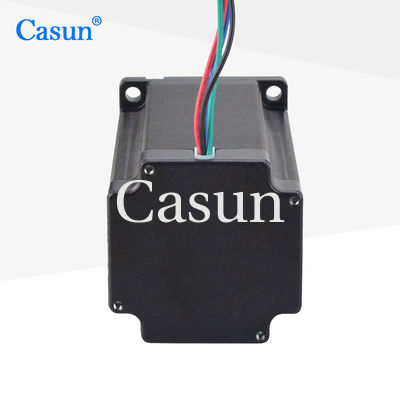

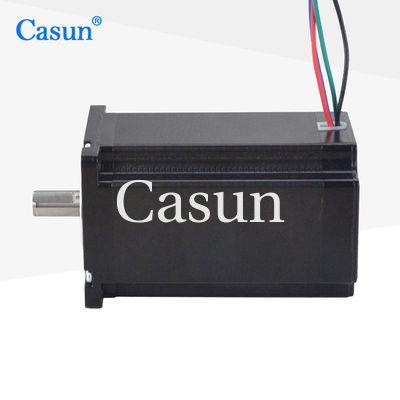

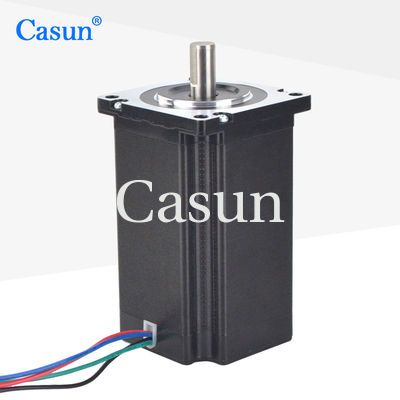

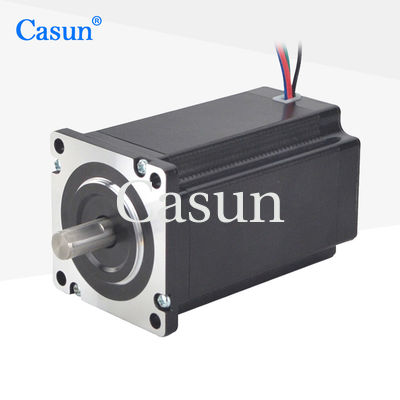

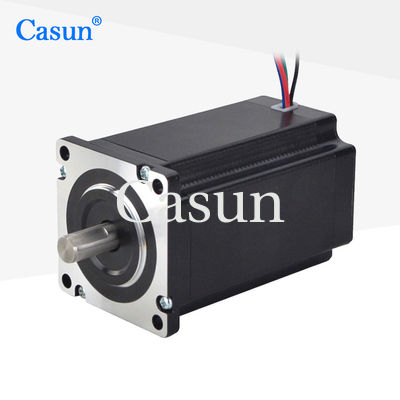

60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit
60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit
60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit
60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit
60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit
60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit

60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 60SHD4704-21B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $14-$22

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

60x60x100mm NEMA 24

,

NEMA 24 Stepper Motor 4NM

,

4NM 36V CNC Stepper Motor Kit

Holding Torque:
4.0N.m
Phase Inductance:
3.5mH
Rated Current:
4.0A
Shaft Length:
21mm
Step Angle:
1.8°
Weight:
1.5kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Holding Torque:
4.0N.m
Phase Inductance:
3.5mH
Rated Current:
4.0A
Shaft Length:
21mm
Step Angle:
1.8°
Weight:
1.5kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 60mm stepper motor has a large volume and can withstand large loads.

Widely used in fields that require heavy loads and high-precision control, such as CNC machine tools, electronic equipment, etc.



Features:

  • Wanted dealers! !

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Provide "multiple international certifications" for high-tech industry and electronic industry equipment.

Dimensions

60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit 0







Motor Specifications



Step Angel



1.8 °

Fram Size



60 mm

Number of Phase



2 Phase

Rated Current



4.0 A

Holding Torque



4000mN.m

Resistance



0.93 hm

Inductance



3.5 mH

Rotor Inertia



1000 g-cm²

Motor weight



1 kg

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves







Submodels

Model Holding
Torque		 Rated
Current		 Resistance
per phase		 Inductance
per phase		 Detent
torque		 Rotor
inertia		 Lead
wire		 Motor
length
mN.m A Ω mH mN.m g.cm² No. mm
60SHD4201 650 0.6 15 20 50 280 4 45
60SHD4401 1500 2.8 1 3.3 70 450 4 56
60SHD4601 3200 4.2 0.75 3.7 120 580 4 86
60SHD6602 2500 3 1.55 3.7 120 580 4


Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit 1 60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit 2 60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit 3 60x60x100mm NEMA 24 Stepper Motor 4NM 36V CNC Stepper Motor Kit 4





Please click the "Get  a quote" button below to tell us your requirements.
