Home > products > Hybrid Stepper Motor > 0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor
0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor
0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor
0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor
0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor
0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor
0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor

0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: B20SHD4252-10P

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $5.94-$8.6

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

0.6A 6V NEMA 8 Stepper Motor

,

NEMA 8 Stepper Motor 40mNm

,

40mNm 2 Phase Bipolar Stepper Motor

Step Angel:
1.8°
Holding Torque:
40mN.m
Current:
0.6A
Motor Length:
38.2mm
Shaft:
Special Shaft 9.8mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
40mN.m
Current:
0.6A
Motor Length:
38.2mm
Shaft:
Special Shaft 9.8mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 28mm base stepper motor can accurately control the position according to the predetermined step size, achieving high-precision positioning and motion control.

Make it very useful in many applications, such as printers, robots, automation equipment, etc.



Features:

  • High accuracy and torque

  • Manufacturing with expertise in research and developmen

  • Available in single or double shaft versions

  • We accept contract manufacturing and provide bespoke services

  • Each model of stepper motor can be suitable for different scenarios





Motor Specifications

Step Angel

1.8 °

Fram Size

20 mm

Number of Phase

2 Phase

Rated Current

0.6 A

Holding Torque

40 mN.m

Resistance

10 ohm

Inductance

4.5 mH

Rotor Inertia

4.5 g-cm²

Motor weight

0.1 kg

Number of leads

4

Connection

Bipolar





Appearance

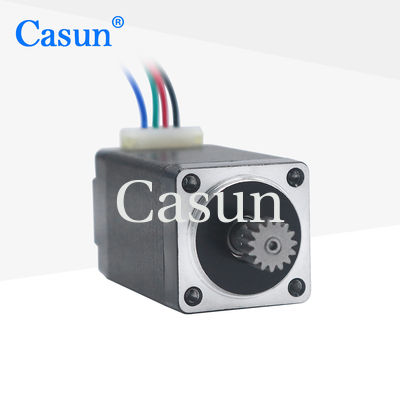

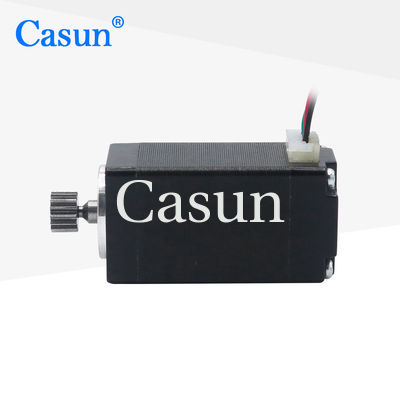

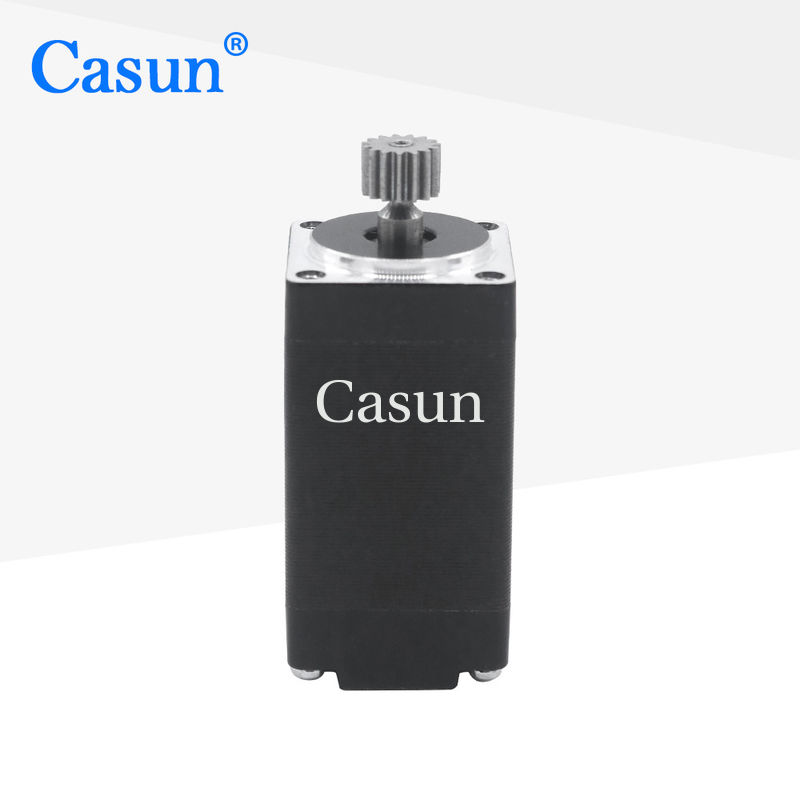

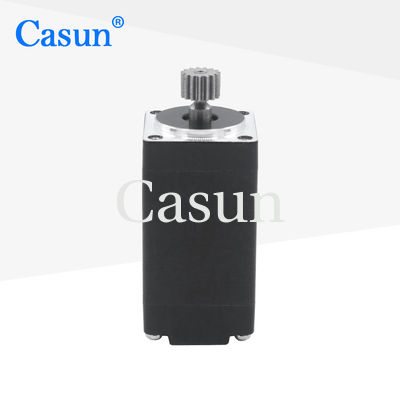

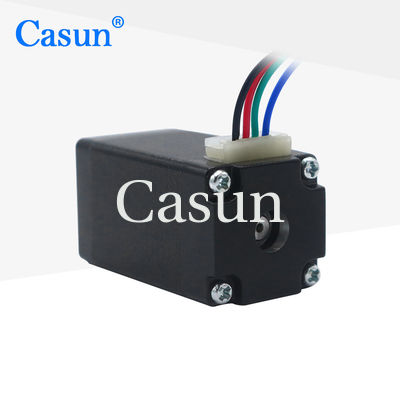

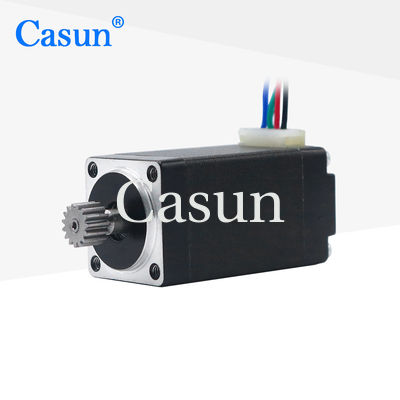

0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor 0

Dimensions

0.6A 6V NEMA 8 Stepper Motor 40mNm 2 Phase Bipolar Stepper Motor 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
