28*28*33mm NEMA 11 Stepper Motor 90mNm 28mm Stepper Motor 4 Wires

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD0207-24B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $5.94-$8.6

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

28mm NEMA 11 Stepper Motor

,

90mNm 28mm Stepper Motor

,

NEMA 11 Stepper Motor 90mNm

Step Angel:
1.8°
Holding Torque:
90mN.m
Current:
0.67A
Motor Length:
33mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
90mN.m
Current:
0.67A
Motor Length:
33mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 28mm base stepper motor has a moderate size, small volume, and convenient installation.

Medical and scientific equipment, as well as household appliances, image scanners, and car navigation.



Features:

  • Bipolar or unipolar versions available

  • Each stepper motor type may be used in a variety of situations

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Provide "multiple international certifications" for high-tech industry and electronic industry equipment



Motor Specifications

Step Angel

1.8 °

Fram Size

28 mm

Number of Phase

2 Phase

Rated Current

0.67 A

Holding Torque

90 mN.m

Resistance

5.8 ohm

Inductance

4.1 mH

Rotor Inertia

9 g-cm²

Motor weight

0.12 kg

Number of leads

4

Connection

Bipolar

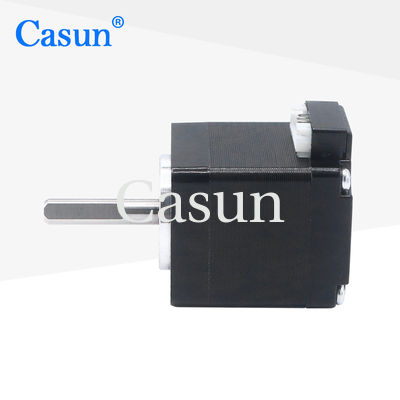

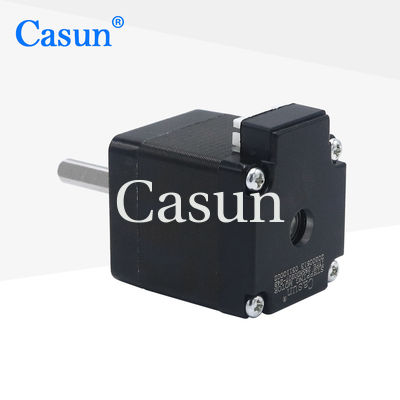

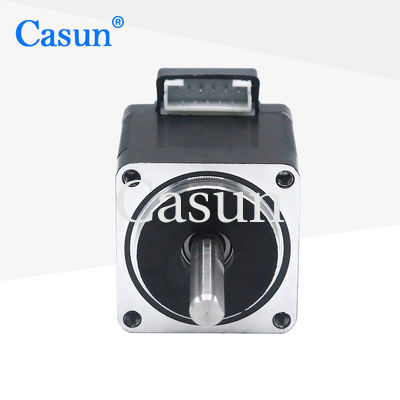

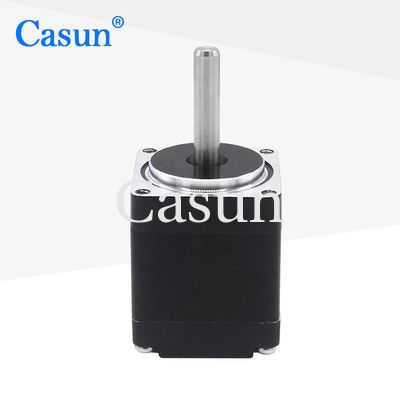

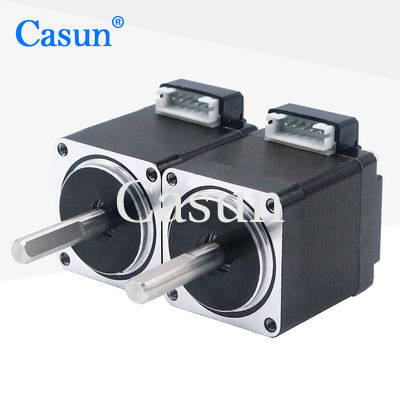

Appearance



28*28*33mm NEMA 11 Stepper Motor 90mNm 28mm Stepper Motor 4 Wires 0

Dimensions

28*28*33mm NEMA 11 Stepper Motor 90mNm 28mm Stepper Motor 4 Wires 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
