Home > products > Hybrid Stepper Motor > Bipolar 1.8deg NEMA 11 Stepper Motor 60mNm 0.67A 4 Lead For CNC XYZ
Bipolar 1.8deg NEMA 11 Stepper Motor 60mNm 0.67A 4 Lead For CNC XYZ
Bipolar 1.8deg NEMA 11 Stepper Motor 60mNm 0.67A 4 Lead For CNC XYZ
Bipolar 1.8deg NEMA 11 Stepper Motor 60mNm 0.67A 4 Lead For CNC XYZ
Bipolar 1.8deg NEMA 11 Stepper Motor 60mNm 0.67A 4 Lead For CNC XYZ
Bipolar 1.8deg NEMA 11 Stepper Motor 60mNm 0.67A 4 Lead For CNC XYZ
Bipolar 1.8deg NEMA 11 Stepper Motor 60mNm 0.67A 4 Lead For CNC XYZ

Bipolar 1.8deg NEMA 11 Stepper Motor 60mNm 0.67A 4 Lead For CNC XYZ

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4202-20L

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $5.94-$8.6

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

Bipolar 1.8deg NEMA 11 Stepper Motor

,

NEMA 11 Stepper Motor 60mNm

,

60mNm Bipolar Stepper Motor

Step Angel:
1.8°
Holding Torque:
60mN.m
Current:
0.67A
Motor Length:
32mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
60mN.m
Current:
0.67A
Motor Length:
32mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 28mm stepper motor is very controllable and can accurately control the speed and direction of rotation by controlling the frequency and sequence of current and pulse signals.

Make it very useful in many applications, such as printers, robots, automation equipment, etc.



Features:

  • Bipolar or unipolar versions available

  • Manufacturing with expertise in research and developmen

  • Available in single or double shaft versions

  • Established in China for 12 years and has served more than 800 customers

  • Customizations on request





Motor Specifications

Step Angel

1.8 °

Fram Size

28 mm

Number of Phase

2 Phase

Rated Current

0.67 A

Holding Torque

60 mN.m

Resistance

5.6 ohm

Inductance

5 mH

Rotor Inertia

9 g-cm²

Motor weight

0.12 kg

Number of leads

4

Connection

Bipolar

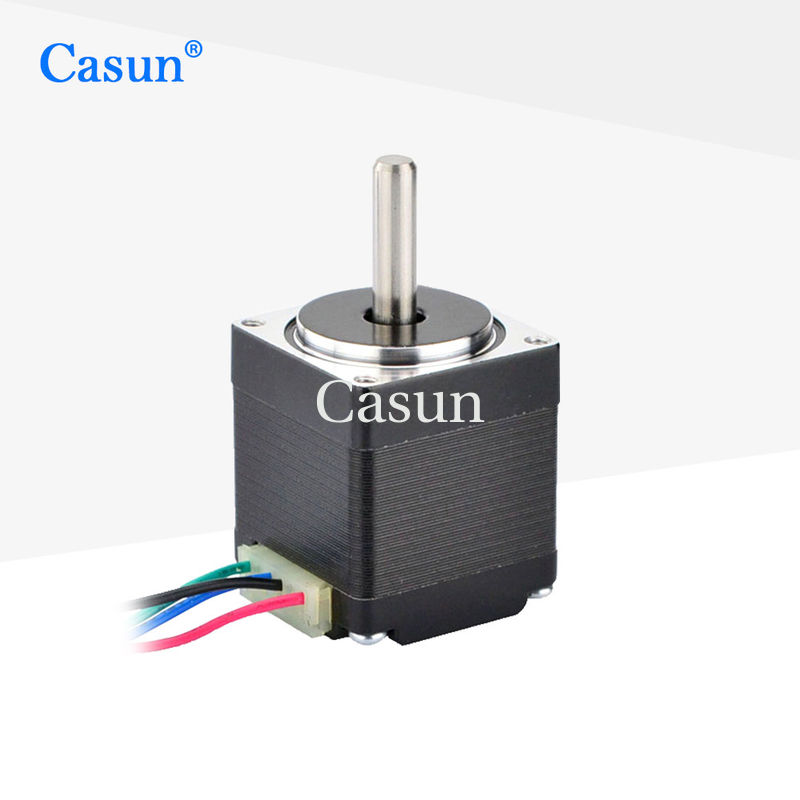

Appearance



Bipolar 1.8deg NEMA 11 Stepper Motor 60mNm 0.67A 4 Lead For CNC XYZ 0

Dimensions

Bipolar 1.8deg NEMA 11 Stepper Motor 60mNm 0.67A 4 Lead For CNC XYZ 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
