35x35mm NEMA 14 Stepper Motor 1.8 Degree 2 Phase Casun Motor

35x35mm NEMA 14 Stepper Motor 1.8 Degree 2 Phase Casun Motor

  • High Light

    35x35mm NEMA 14 Stepper Motor

    ,

    35mm NEMA 14 Stepper Motor

    ,

    1.8 Degree 2 Phase Casun Motor

  • Step Angel
    1.8°
  • Holding Torque
    60mN.m
  • Current
    0.4A
  • Motor Length
    20mm
  • Shaft
    Round Shaft 15mm Length
  • Place of Origin
    CHINA
  • Brand Name
    Casun
  • Certification
    CE,ROSH,ISO
  • Model Number
    P35SHD0303-15H
  • Minimum Order Quantity
    1PC
  • Price
    $4.14-$6.98
  • Packaging Details
    Carton:36x29x14cm
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

35x35mm NEMA 14 Stepper Motor 1.8 Degree 2 Phase Casun Motor

【P35SHD0303】Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

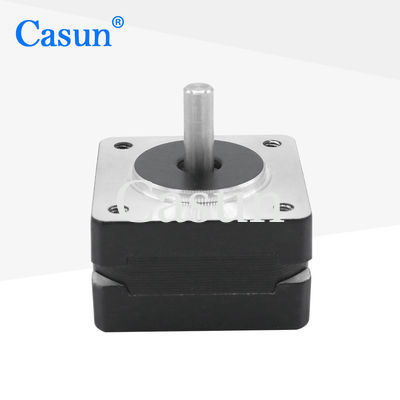

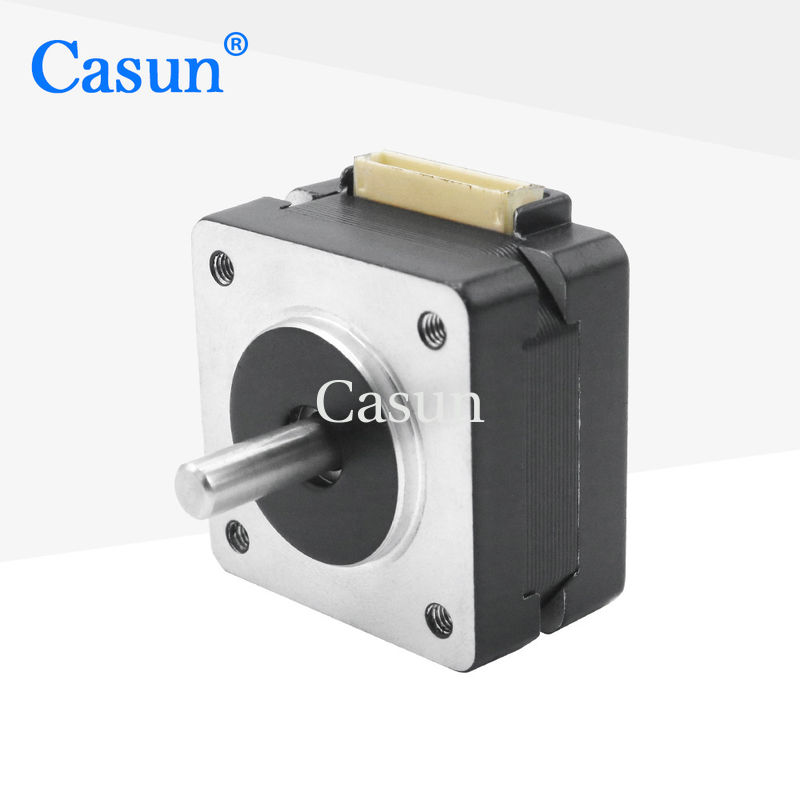

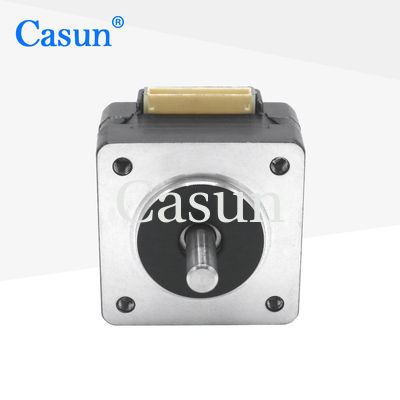

Appearance



35x35mm NEMA 14 Stepper Motor 1.8 Degree 2 Phase Casun Motor 0

Dimensions

35x35mm NEMA 14 Stepper Motor 1.8 Degree 2 Phase Casun Motor 1



Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

60 mN.m

Resistance

22 ohm

Inductance

15 mH

Rotor Inertia

10 g-cm²

Motor weight

0.09 kg

Number of leads

4

Connection

Bipolar









Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
