Home > products > Hybrid Stepper Motor > 0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera

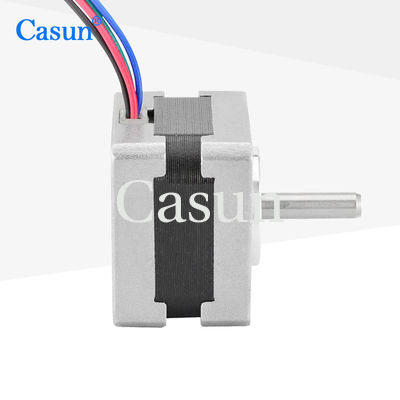

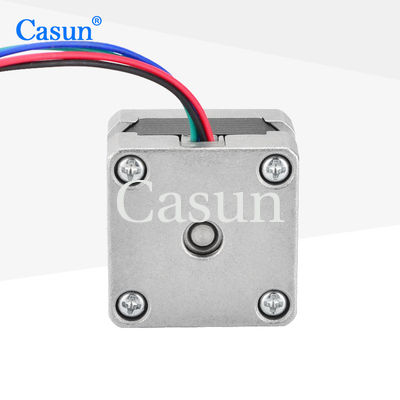

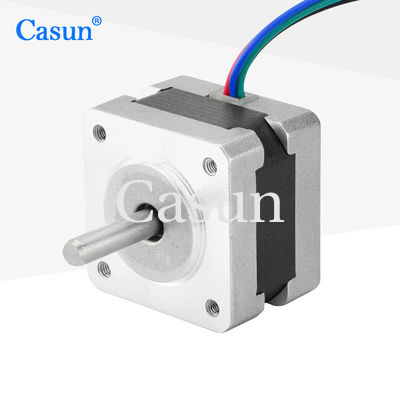

0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera
0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera
0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera
0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera
0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera
0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera
0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera

0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 35SHD4021-20

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

100mNm 2 Phase Unipolar Stepper Motor

,

0.4A 2 Phase Unipolar Stepper Motor

,

Surveillance Camera Unipolar Stepper Motor

Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.7A
Motor Length:
26mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.7A
Motor Length:
26mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Despite its relatively small size, the 35mm stepper motor can still provide a relatively high power output.

Water pumps, electronic door locks, image scanners, and fine positioning devices are examples of small automation systems



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • Every stepper motor model has use in a variety of situations

  • Ten-year warranty and purchase with confidence





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.7 A

Holding Torque

100 mN.m

Resistance

6.5 ohm

Inductance

6.0 mH

Rotor Inertia

12 g-cm²

Motor weight

0.15 kg

Number of leads

4

Connection

Bipolar





Appearance



0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera 0

Dimensions

0.4A 100mNm 2 Phase Unipolar Stepper Motor For Surveillance Camera 1







Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
