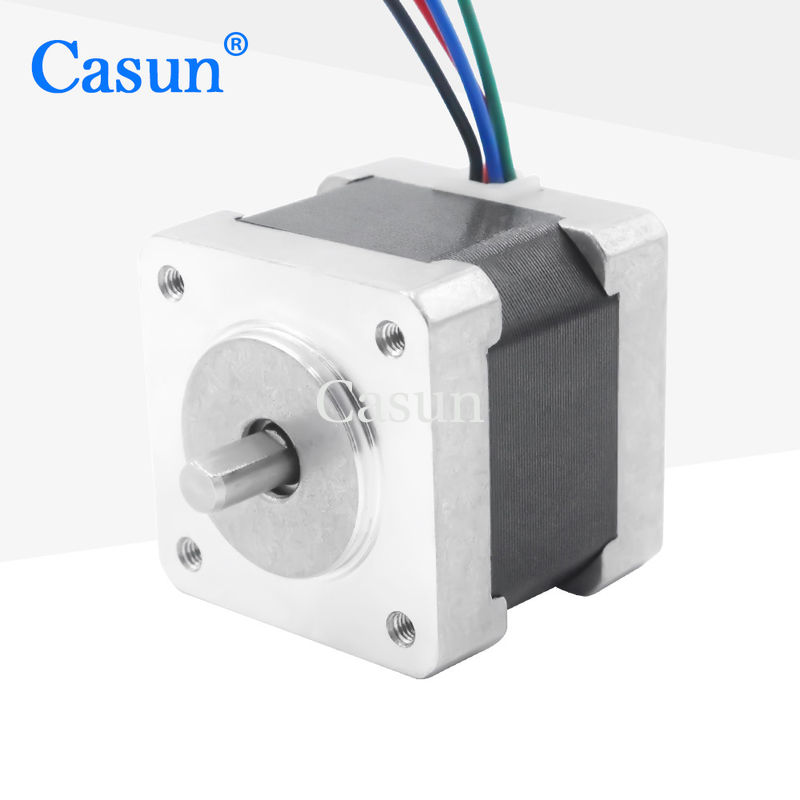

0.15Nm 1A NEMA 14 Stepper Motor 35x35x34mm 2 Phase 4 Wire Micro Stepper Motor

0.15Nm 1A NEMA 14 Stepper Motor 35x35x34mm 2 Phase 4 Wire Micro Stepper Motor

Brand Name:	Casun
Model Number:	35SHD4103-10B
MOQ:	1PC
Price:	$4.14-$6.98
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

155mN.m

Current:

1.0A

Motor Length:

34mm

Shaft:

Milling Flat Shaft 10mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

0.15Nm 1A NEMA 14 Stepper Motor

34mm 2 Phase Micro Stepper Motor

1A NEMA 14 Stepper Motor 35mm

Product Description

0.15Nm 1A NEMA 14 Stepper Motor 35x35x34mm 2 Phase 4 Wire Micro Stepper Motor

The 35mm stepper motor can quickly start and stop after receiving control signals, and has excellent response speed. Ideal for image scanners, electronic door locks, water pumps, small automation systems, and precise positioning devices.

Key Features

Multiple international certifications for high-tech and electrical industry equipment
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations available on request

Motor Specifications

Step Angle	1.8°
Frame Size	35 mm
Number of Phase	2 Phase
Rated Current	1.0 A
Holding Torque	155 mN.m
Resistance	3.8 ohm
Inductance	5.8 mH
Rotor Inertia	14 g-cm²
Motor Weight	0.18 kg
Number of Leads	4
Connection	Bipolar

Appearance

Dimensions

Torque Curves

Torque curve data available upon request.

Custom Motor Solutions

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Connector
