Home > products > Hybrid Stepper Motor > 350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS

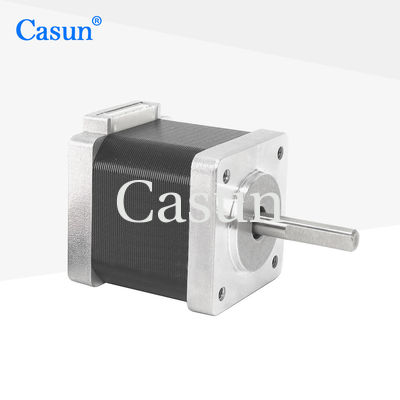

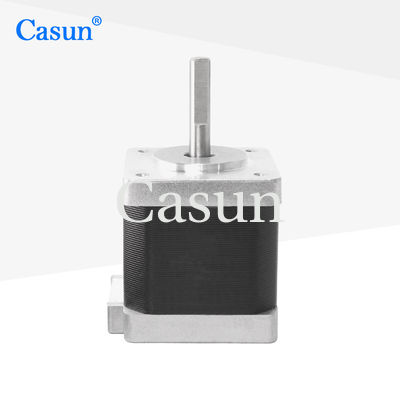

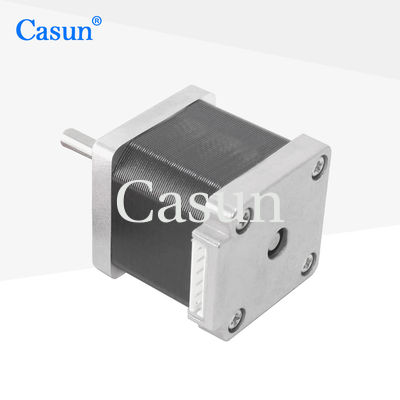

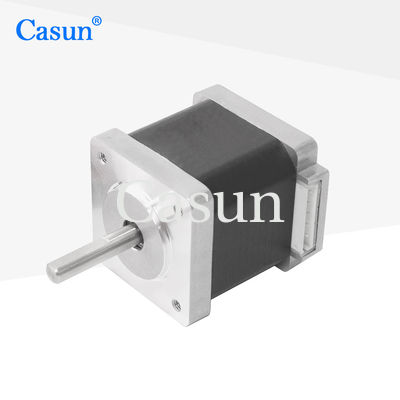

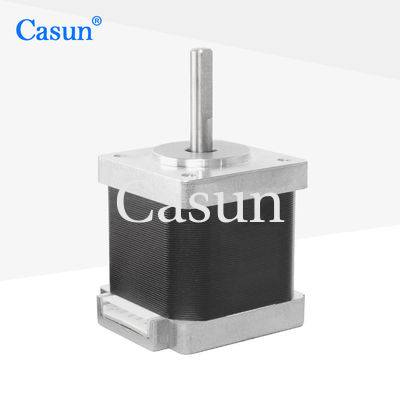

350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS
350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS
350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS
350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS
350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS
350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS
350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS

350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: P35SHD0808-20B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

33 ohm Stepper Motor 1.8 Step Angle

,

350mNm Stepper Motor

,

350mNm Two Phase Stepper Motor

Step Angel:
1.8°
Holding Torque:
350mN.m
Current:
0.4A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
350mN.m
Current:
0.4A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 35mm stepper motor can rotate at a small step angle and accurately locate the desired position.

Small automation systems, water pumps, electric door locks, image scanners, and precision positioning tools



Features:

  • Within 48 hours, one of our engineers will contact you with the best option

  • Offer specialised services

  • Available in single or double shaft versions

  • Ten-year warranty and secure shopping

  • Customizations on request





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

350 mN.m

Resistance

33 ohm

Inductance

42 mH

Rotor Inertia

12 g-cm²

Motor weight

0.15 kg

Number of leads

4

Connection

Bipolar





Appearance



350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS 0

Dimensions

350mNm 33 Ohm Stepper Motor 1.8 Step Angle Two Phase CE ISO ROHS 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
