Home > products > Hybrid Stepper Motor > 250mNm NEMA 14 High Accuracy Stepper Motor Micro Stepping 35mm

250mNm NEMA 14 High Accuracy Stepper Motor Micro Stepping 35mm

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: P35SHD0809-21B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

NEMA 14 High Accuracy Stepper Motor

,

Stepper Motor Micro Stepping 35mm

,

250mNm NEMA 14 Stepper Motor

Step Angel:
1.8°
Holding Torque:
250mN.m
Current:
0.7A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
250mN.m
Current:
0.7A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 35mm stepper motor can drive a load with a relatively high torque, causing it to rotate or move.

It is ideal for applications with large loads, such as Automatic door, medical equipment and automated production lines.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Professional research and development manufacturing

  • Each model of stepper motor can be suitable for different scenarios

  • Needed dealers! !





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.7 A

Holding Torque

250 mN.m

Resistance

7.2 ohm

Inductance

7.7 mH

Rotor Inertia

35 g-cm²

Motor weight

0.3 kg

Number of leads

4

Connection

Bipolar

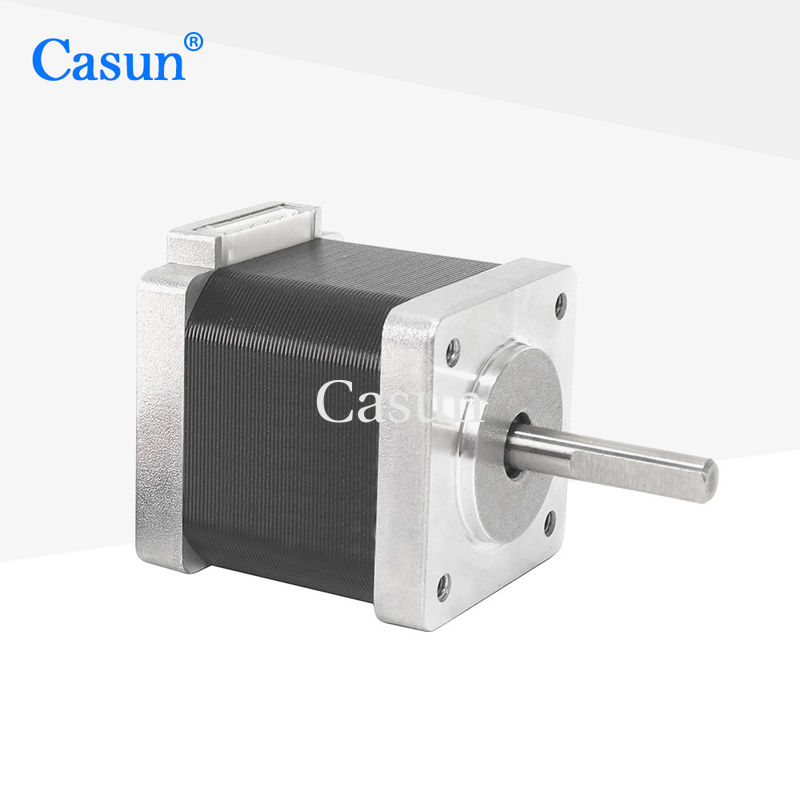

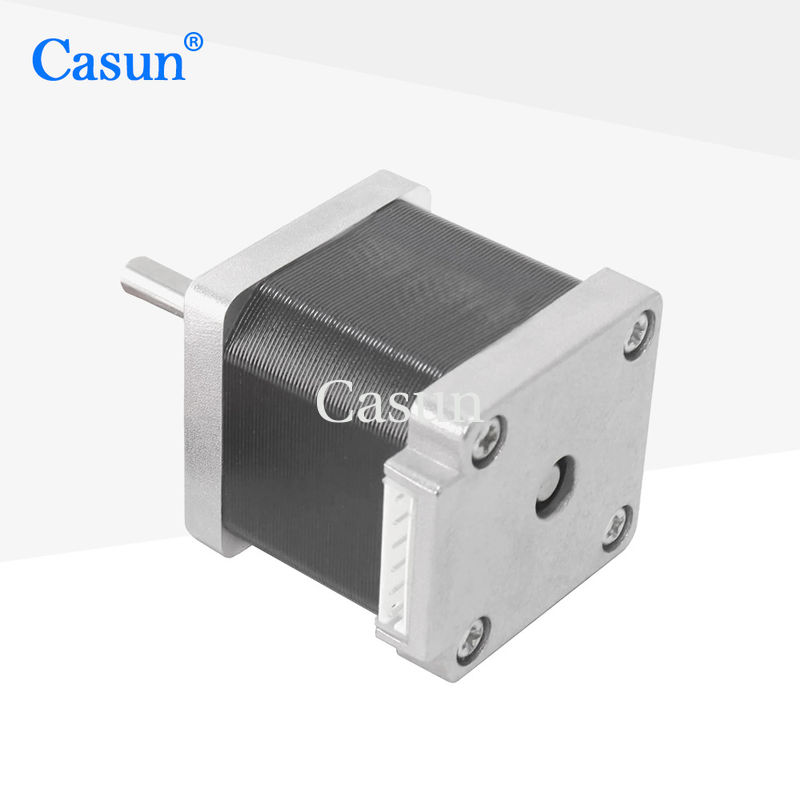

Appearance



250mNm NEMA 14 High Accuracy Stepper Motor Micro Stepping 35mm 0

Dimensions

250mNm NEMA 14 High Accuracy Stepper Motor Micro Stepping 35mm 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
