Home > products > Hybrid Stepper Motor > 140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved

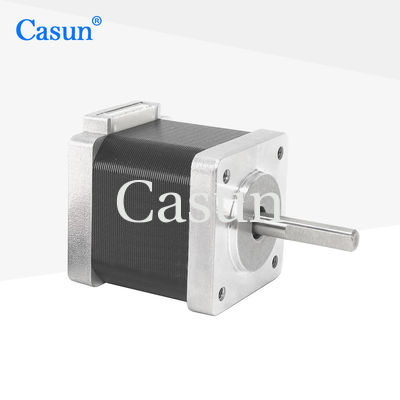

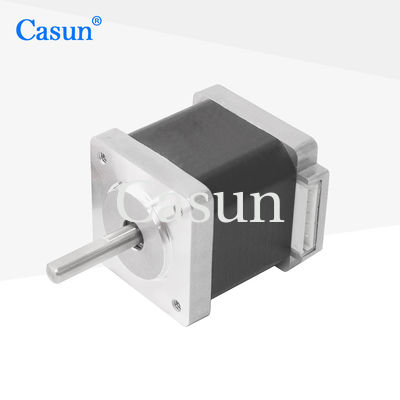

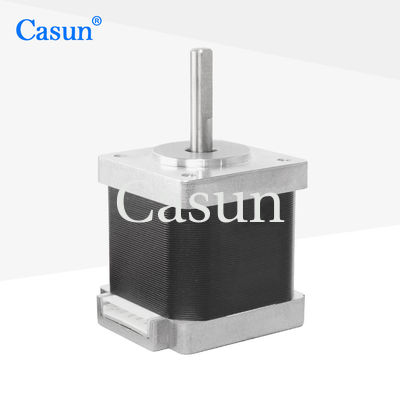

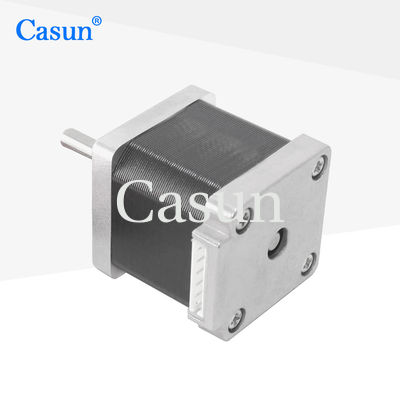

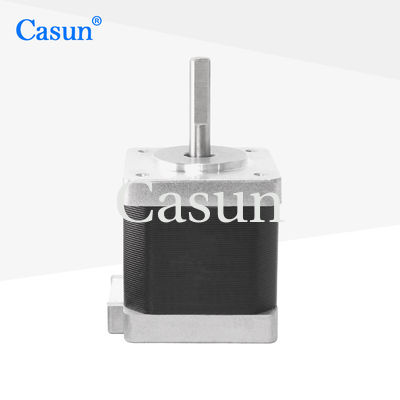

140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved
140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved
140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved
140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved
140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved
140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved
140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved

140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 35SHD0806-20BV2

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

35mm 1.8 Degree Stepper Motor

,

35mm Stepper Motor NEMA 14

,

140mNm 1.8 Degree Stepper Motor

Step Angel:
1.8°
Holding Torque:
140mN.m
Current:
1.0A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
140mN.m
Current:
1.0A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The 35mm Hybrid Stepper Motor Series Has good start stop characteristics, and its movement can be achieved by controlling pulses.

Water pumps, electronic door locks, image scanners, and fine positioning devices are examples of small automation systems.



Features:

  • Bipolar or unipolar versions available

  • 12 years old and has served more than 800 clients in China

  • Available in single or double shaft versions

  • To give the best solution, our engineers will contact you within 48 hours

  • We accept contract manufacturing and provide bespoke services. Needed dealers!





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

140 mN.m

Resistance

2.5 ohm

Inductance

1.9 mH

Rotor Inertia

18 g-cm²

Motor weight

0.21 kg

Number of leads

4

Connection

Bipolar





Appearance



140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved 0

Dimensions

140mNm 35mm 1.8 Degree Stepper Motor NEMA 14 CE And RoHS Approved 1



Torque Curves



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
