39x39x22mm 12V NEMA 17 Stepper Motor 100mN.M For Robot

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 39SHD4504-20

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

39x39x22mm 12V NEMA 17

,

22mm 12V NEMA 17 Stepper Motor

,

Robot NEMA 17 Stepper Motor

Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.4A
Motor Length:
22mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.4A
Motor Length:
22mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

In a range of sizes, the 39mm Hybrid Stepper Motor Series provides strong holding torque.

To lessen vibration and produce a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.



Features:

  • Versions in unipolar or bipolar are offered

  • Hybrid stepper building

  • Available in variations with a single or double shaft

  • CE and RoHS compliance

  • Upon request, modifications





Motor Specifications



Step Angel

1.8 °

Fram Size

39 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

100 mN.m

Resistance

30 ohm

Inductance

26 mH

Rotor Inertia

15 g-cm²

Motor weight

0.17 kg

Number of leads

4

Connection

Bipolar

Appearance

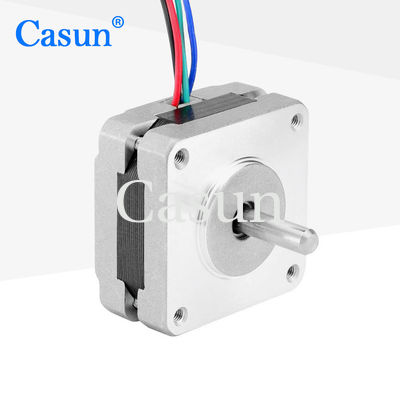

39x39x22mm 12V NEMA 17 Stepper Motor 100mN.M For Robot 0

Dimensions

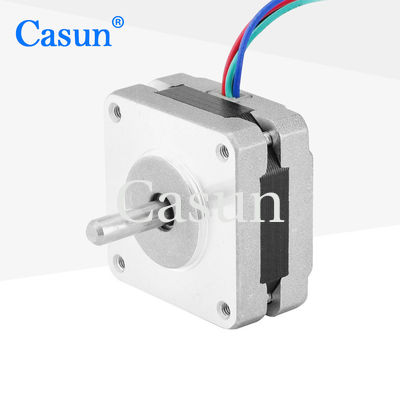

39x39x22mm 12V NEMA 17 Stepper Motor 100mN.M For Robot 1










Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves









Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
39SHD0001-20 100mN.m 1.8° 20mm Round Shaft
20mm
0.48A
39SHD0504-20 100mN.m 1.8° 22mm Round Shaft
20mm
0.4A
39SHD0611-20 200mN.m 1.8° 25mm Round Shaft
20mm
0.4A
39SHD0302-20 220mN.m 1.8° 34mm Round Shaft
20mm
0.4A
39SHD0401-24 220mN.m 1.8° 38mm Round Shaft
24mm
0.4A
39SHD0801-24B 220mN.m 1.8° 48mm D Shaft
24mm
0.4A





Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

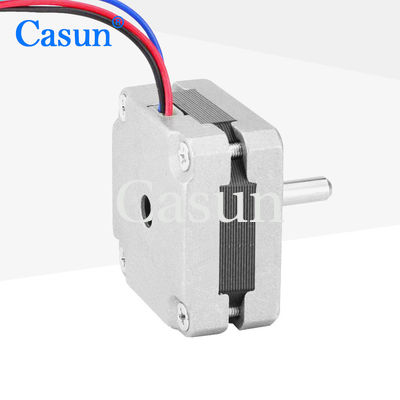

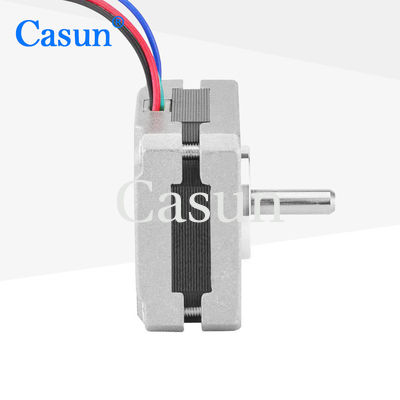

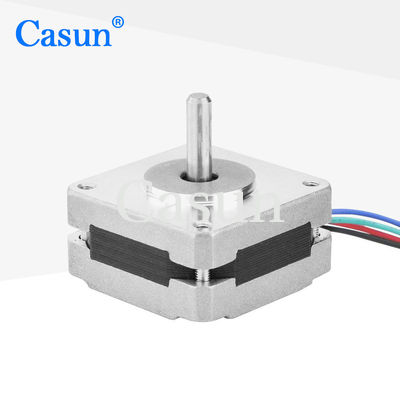

39x39x22mm 12V NEMA 17 Stepper Motor 100mN.M For Robot 2 39x39x22mm 12V NEMA 17 Stepper Motor 100mN.M For Robot 3 39x39x22mm 12V NEMA 17 Stepper Motor 100mN.M For Robot 4 39x39x22mm 12V NEMA 17 Stepper Motor 100mN.M For Robot 5



Please click the "Get  a quote" button below to tell us your requirements.
