High Frequency NEMA 16 Stepper Motor 1.8 Degree 39mm Body For 3D Printer

High Frequency NEMA 16 Stepper Motor 1.8 Degree 39mm Body For 3D Printer

  • High Light

    High Frequency NEMA 16 Stepper Motor

    ,

    NEMA 16 Stepper Motor 1.8 Degree

    ,

    39mm Body 3D Printer Stepper Motor

  • Step Angel
    1.8°
  • Holding Torque
    150mN.m
  • Current
    1.0A
  • Motor Length
    34mm
  • Shaft
    Round Shaft 20mm Length
  • Place of Origin
    CHINA
  • Brand Name
    Casun
  • Certification
    CE,ROSH,ISO
  • Model Number
    39SHD4301-20
  • Minimum Order Quantity
    1PC
  • Price
    $4.14-$6.98
  • Packaging Details
    Carton:36x29x14cm
  • Delivery Time
    7-15 days
  • Payment Terms
    D/A, T/T, L/C, D/P
  • Supply Ability
    40000+PCS+Month

High Frequency NEMA 16 Stepper Motor 1.8 Degree 39mm Body For 3D Printer

【39SHD4301】High frequency NEMA 16 Hybrid Stepping Motor 1.8 Degree 39mm body for 3D printer

The 39mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

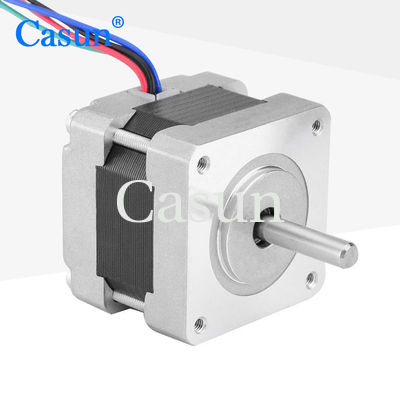

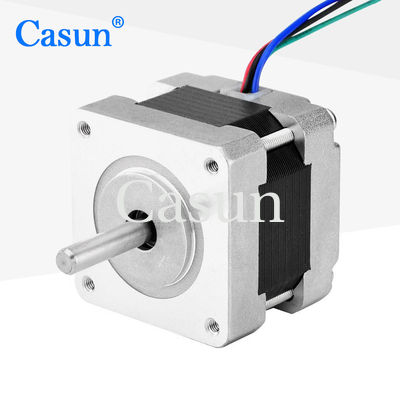

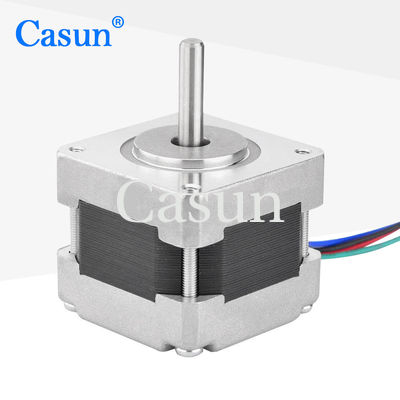

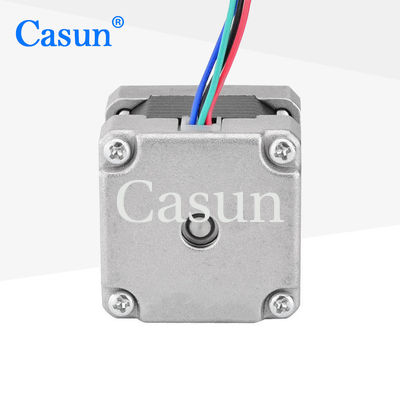

Appearance



High Frequency NEMA 16 Stepper Motor 1.8 Degree 39mm Body For 3D Printer 0

Dimensions

High Frequency NEMA 16 Stepper Motor 1.8 Degree 39mm Body For 3D Printer 1





Motor Specifications



Step Angel

1.8 °

Fram Size

39 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

150 mN.m

Resistance

4.5 ohm

Inductance

5.1 mH

Rotor Inertia

20 g-cm²

Motor weight

0.18 kg

Number of leads

4

Connection

Bipolar








Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves









Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
39SHD0001-20 100mN.m 1.8° 20mm Round Shaft
20mm
0.48A
39SHD0504-20 100mN.m 1.8° 22mm Round Shaft
20mm
0.4A
39SHD0611-20 200mN.m 1.8° 25mm Round Shaft
20mm
0.4A
39SHD0302-20 220mN.m 1.8° 34mm Round Shaft
20mm
0.4A
39SHD0401-24 220mN.m 1.8° 38mm Round Shaft
24mm
0.4A
39SHD0801-24B 220mN.m 1.8° 48mm D Shaft
24mm
0.4A





Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
