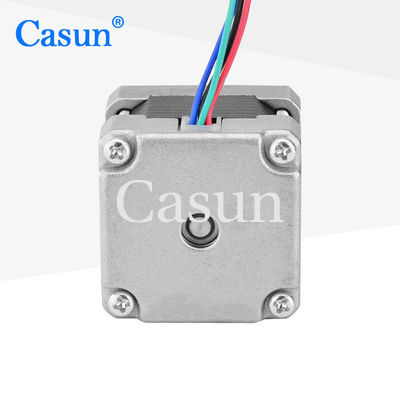

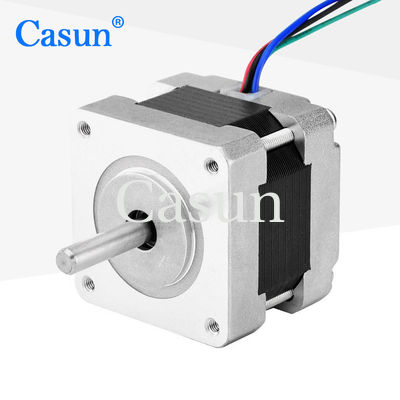

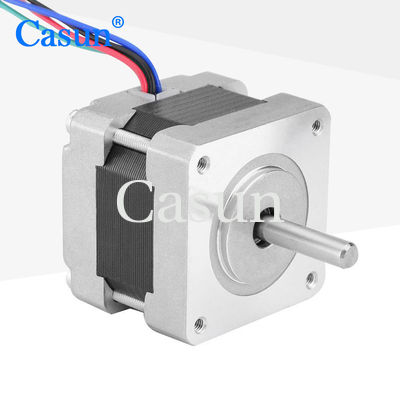

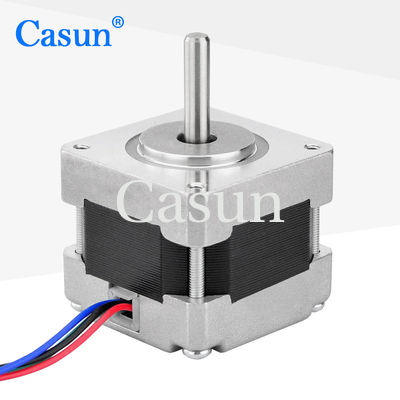

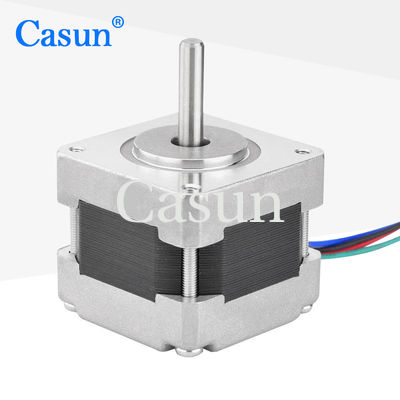

39*39*34mm NEMA 16 Hybrid Stepping Motor 14V DC Casun Motor
-
High Light
39*39*34mm NEMA 16
,NEMA 16 Hybrid Stepping Motor
,14V DC Casun Motor
-
Step Angel1.8°
-
Holding Torque220mN.m
-
Current0.4A
-
Motor Length34mm
-
ShaftRound Shaft 22mm Length
-
Place of OriginCHINA
-
Brand NameCasun
-
CertificationCE,ROSH,ISO
-
Model Number39SHD4302-22
-
Minimum Order Quantity1PC
-
Price$4.14-$6.98
-
Packaging DetailsCarton:36x29x14cm
-
Delivery Time7-15 days
-
Payment TermsD/A, T/T, L/C, D/P
-
Supply Ability40000+PCS+Month
39*39*34mm NEMA 16 Hybrid Stepping Motor 14V DC Casun Motor
【39SHD4302】39*39*34mm NEMA 16 Hybrid Stepping Motor 14V DC for CCTV with Certification
The 39mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
-
Bipolar or unipolar versions available
-
Hybrid stepper construction
-
Available in single or double shaft versions
-
CE and RoHS approved
-
Customizations on request
Appearance
Dimensions
Motor Specifications
Step Angel |
1.8 ° |
Fram Size |
39 mm |
Number of Phase |
2 Phase |
Rated Current |
0.4 A |
Holding Torque |
220 mN.m |
Resistance |
35 ohm |
Inductance |
45 mH |
Rotor Inertia |
20 g-cm² |
Motor weight |
0.18 kg |
Number of leads |
4 |
Connection |
Bipolar |
Operating Specifications
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Torque Curves
Submodels
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 39SHD0001-20 | 100mN.m | 1.8° | 20mm | Round Shaft 20mm |
0.48A |
| 39SHD0504-20 | 100mN.m | 1.8° | 22mm | Round Shaft 20mm |
0.4A |
| 39SHD0611-20 | 200mN.m | 1.8° | 25mm | Round Shaft 20mm |
0.4A |
| 39SHD0302-20 | 220mN.m | 1.8° | 34mm | Round Shaft 20mm |
0.4A |
| 39SHD0401-24 | 220mN.m | 1.8° | 38mm | Round Shaft 24mm |
0.4A |
| 39SHD0801-24B | 220mN.m | 1.8° | 48mm | D Shaft 24mm |
0.4A |
Download
If our standard motor cannot meet your needs,
we can customize the motor according to your needs
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Options:
Encoder |
Brake |
Gearbox |
Shaft |
|
|
|
|
Please click the "Get a quote" button below to tell us your requirements.
