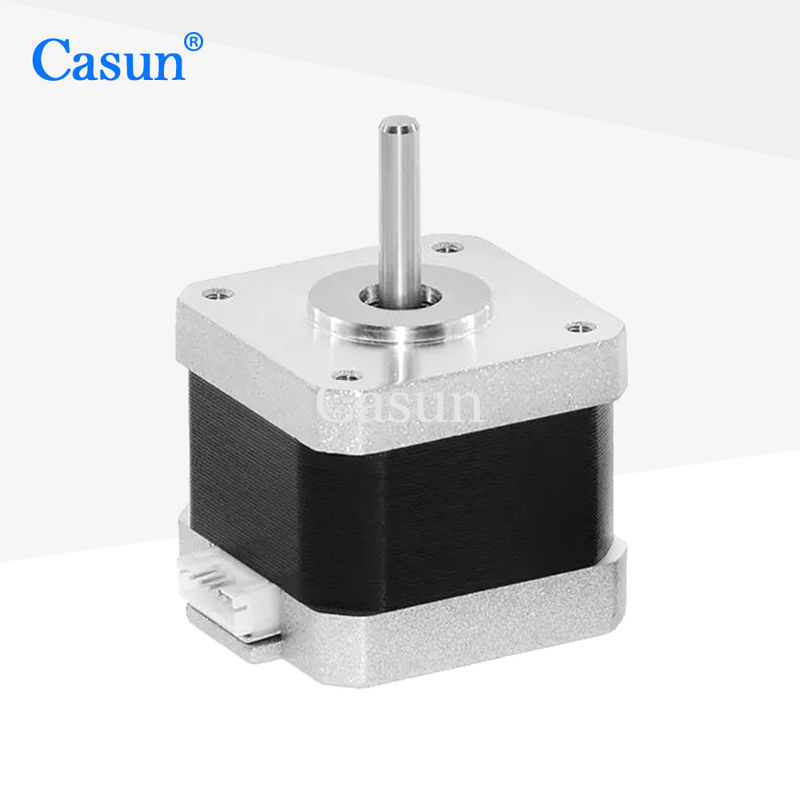

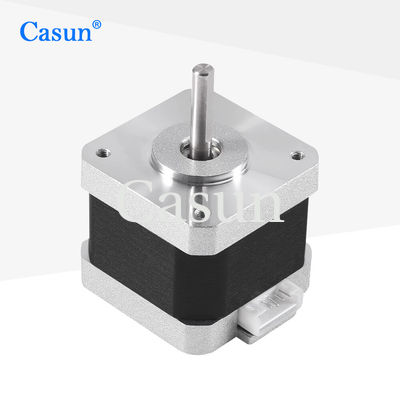

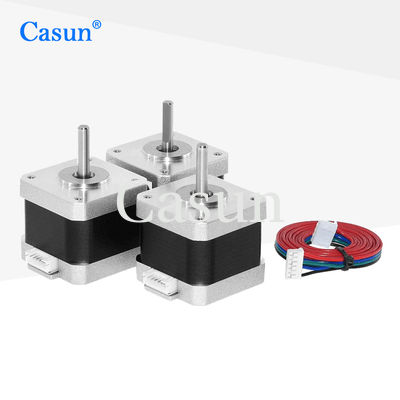

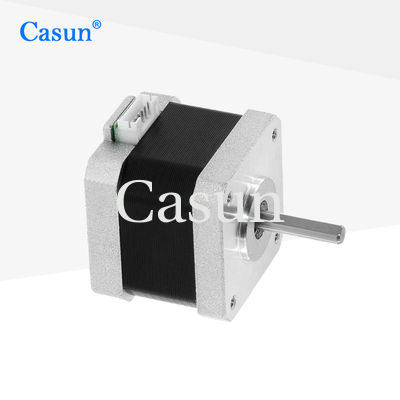

STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m

name

STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m

Brand Name: Casun
Model Number: 42SHD0217-24
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
400mN.m
Current:
1.5A
Motor Length:
40mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

2 PHASE NEMA 17 Stepper Motor

Product Description

NEMA 17 stepper motors typically have lower costs, making them highly attractive in cost sensitive applications.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.



Features:

  • Bipolar or unipolar versions available

  • We provide tailored services and welcome contract-based production

  • Dealers are sought after

  • CE and RoHS approved

  • Customizations on request

Appearance

STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m 0

Dimensions



STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m 1



Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

400 mN.m

Resistance

2.2 ohm

Inductance

5.0 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m 2 STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m 3 STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m 4 STEPPER MOTOR 1.8° 2 PHASE NEMA 17 42X42X40mm 450mN.m 5



Please click the "Get a quote" button below to tell us your requirements.
