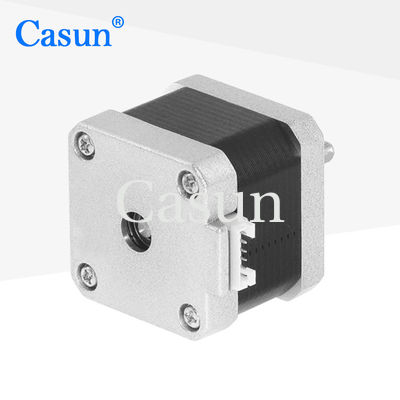

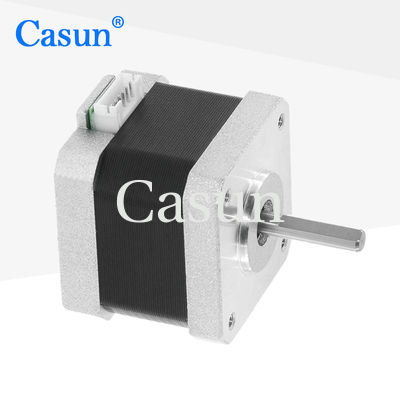

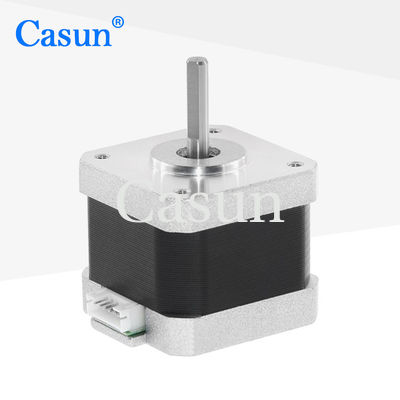

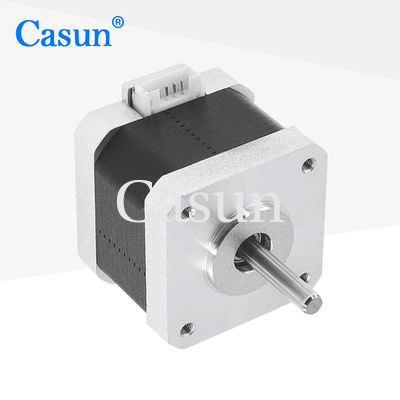

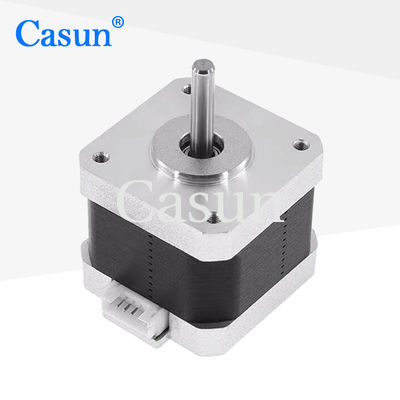

NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 0.4A 3D PRINTER

name

NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 0.4A 3D PRINTER

Brand Name: Casun
Model Number: 42SHD0285-24B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
360mN.m
Current:
1.68A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

3D PRINTER NEMA 17 STEPPER MOTOR

,

40MM BODY NEMA 17 STEPPER MOTOR

Product Description

The NEMA 17 stepper motor is compatible with various controllers and drivers and can be easily integrated into existing automation solutions.

Precision positioning platforms in electronic manufacturing, semiconductor processing, and optical equipment.



Features:

  • Hybrid stepper construction

  • Backed by a 10-year warranty for your confident purchase

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Contract-based manufacturing services are welcome

Appearance

NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 0.4A 3D PRINTER 0

Dimensions

NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 0.4A 3D PRINTER 1



Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

400 mN.m

Resistance

30 ohm

Inductance

60 mH

Rotor Inertia

57 g-cm²

Motor weight

0.24 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 0.4A 3D PRINTER 2 NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 0.4A 3D PRINTER 3 NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 0.4A 3D PRINTER 4 NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 40MM BODY 0.4A 3D PRINTER 5



Please click the "Get a quote" button below to tell us your requirements.
