Home > products > Hybrid Stepper Motor > 42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine

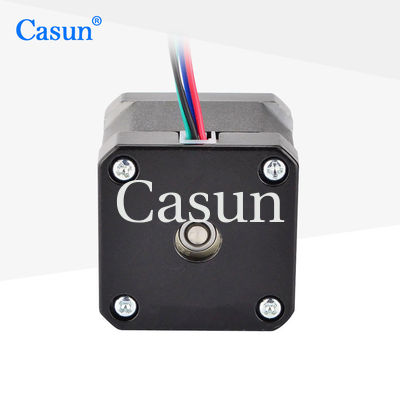

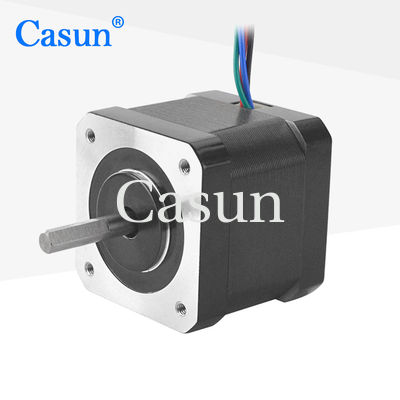

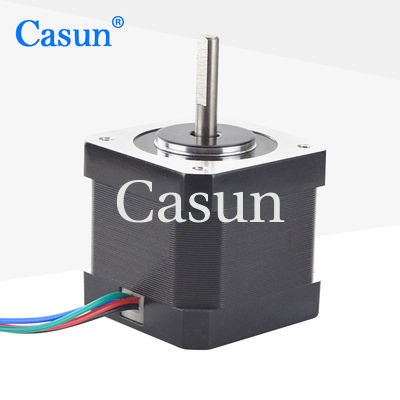

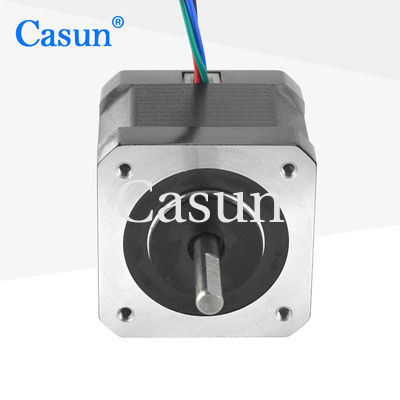

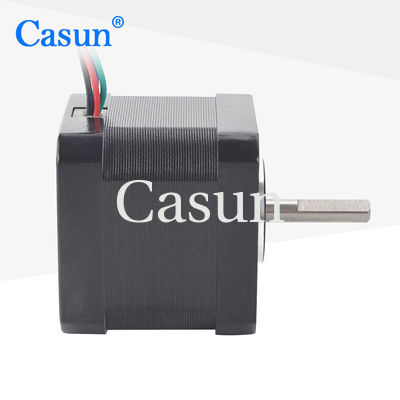

42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine
42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine
42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine
42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine
42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine
42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine
42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine

42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD4277-24BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.2A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.2A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The vibration and noise generated during operation are relatively low, making them suitable for use in quiet environments.

The NEMA 17 stepper motor is used for precise control of the position of the print head or laser head.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Seeking distributors!

  • Operational for 12 years in China, serving over 800 clients

  • Customizations on request

Motor Specifications

Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

450 mN.m

Resistance

3.1 ohm

Inductance

15 mH

Rotor Inertia

57 g-cm²

Motor weight

0.3 kg

Number of leads

4

Connection

Bipolar



Appearance

42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine 0

Dimensions

42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine 2 42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine 3 42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine 4 42x42x40mm 1.8 Degree 2 Phase Stepping Motor Nema 17 1.2A for CNC DIY Machine 5



Please click the "Get a quote" button below to tell us your requirements.
