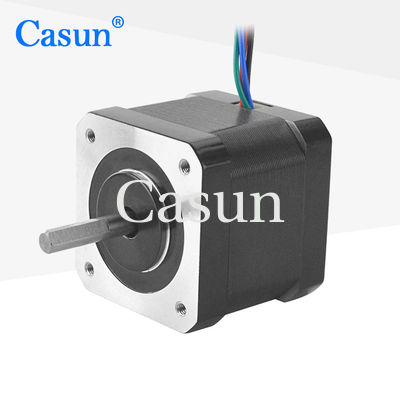

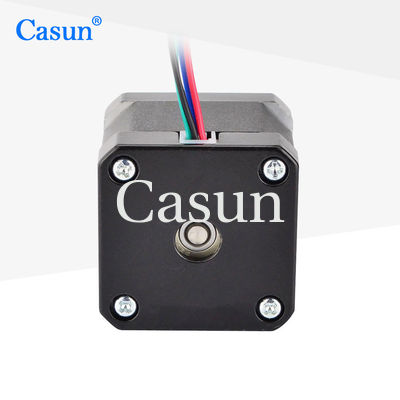

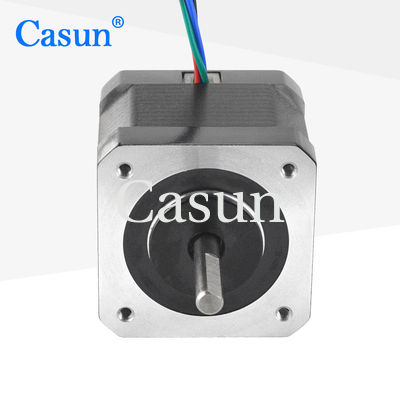

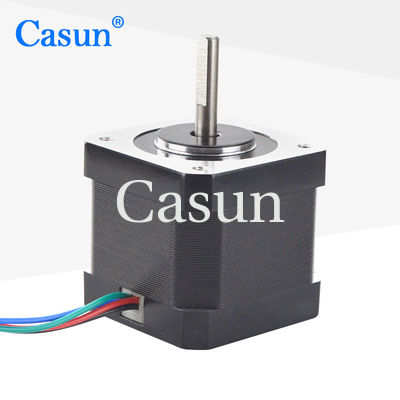

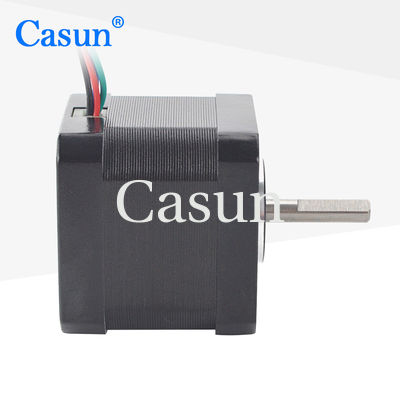

【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot
  • 【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot
  • 【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot
  • 【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot
  • 【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot
  • 【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot
  • 【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot

【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot

Place of Origin CHINA
Brand Name Casun
Certification CE,ROSH,ISO
Model Number 42SHD4269-22BH
Product Details
Step Angel:
1.8°
Holding Torque:
450mN.m
Current:
1.2A
Motor Length:
40mm
Shaft:
Milling Flat Shaft 22mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

The NEMA 17 stepper motor has a high static torque output capability and is not affected by load changes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Customizations on request

  • Dealers wanted!

  • Available in single or double shaft versions

  • Professional research and development manufacturing

  • Different situations may call for a particular stepper motor model





Motor Specifications



Step Angel

1.8 °

Fram Size

40 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

450 mN.m

Resistance

6.4 ohm

Inductance

9.0 mH

Rotor Inertia

57 g-cm²

Motor weight

0.3 kg

Number of leads

4

Connection

Bipolar

Appearance

【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot 0

Dimensions

【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot 2 【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot 3 【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot 4 【42SHD4269】NEMA 17 TWO-PHASE 1.8° 42 STEPPER MOTOR 42×42×40mm 1.2A 0.45Nm for Robot 5
