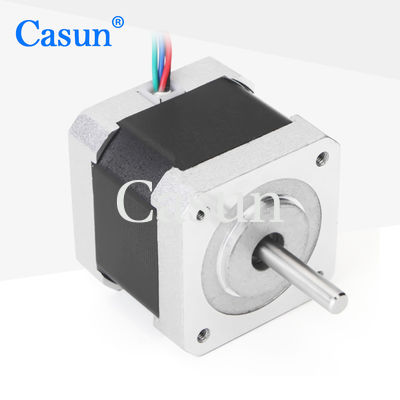

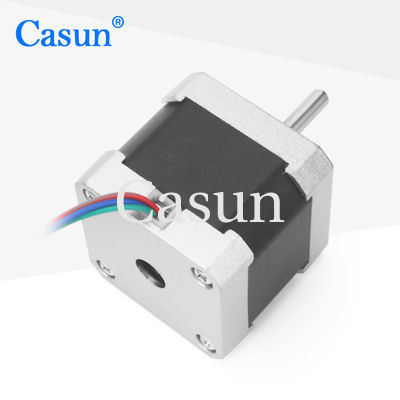

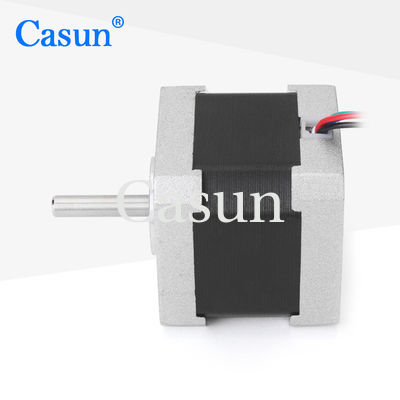

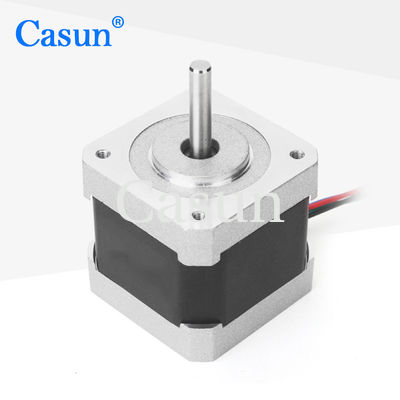

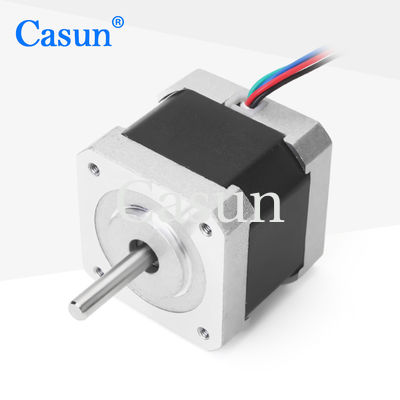

【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot

name

【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot

Brand Name: Casun
Model Number: 42SHD4259-22
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
480mN.m
Current:
1.2A
Motor Length:
40mm
Shaft:
Round Shaft 22mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

4 wires NEMA 17 Stepper Motor

,

7.2V NEMA 17 Stepper Motor

,

42SHD4259 NEMA 17 Stepper Motor

Product Description
【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot

The NEMA 17 stepper motor can achieve very precise position control, and its movement can be carried out according to predetermined steps, which can stay in any position with high accuracy. Choose a baseline version or request your own customized configuration.

Key Features
  • We provide specialised services and welcome contract manufacturing
  • Ten-year guarantee, buy with assurance
  • Available in single or double shaft versions
  • Professional drivetrain solution specialist
  • Established in China for 12 years and has served more than 800 customers
Motor Specifications
Step Angle 1.8°
Frame Size 40 mm
Number of Phase 2 Phase
Rated Current 1.2 A
Holding Torque 480 mN.m
Resistance 6.0 ohm
Inductance 11.0 mH
Rotor Inertia 57 g-cm²
Motor Weight 0.24 kg
Number of Leads 4
Connection Bipolar
Appearance & Dimensions
【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot 0 【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot 1
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130 deg C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Torque Curves
Available Models
Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A
Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder
【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot 2
Brake
【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot 3
Gearbox
【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot 4
Shaft
【42SHD4259】NEMA 17 Bipolar 2 Phase 1.2A 7.2V Stepper Motor 48cmN.m with 4 wires for Stage Light Robot 5

Please click the "Get a quote" button below to tell us your requirements.
