Home > products > Hybrid Stepper Motor > 【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor

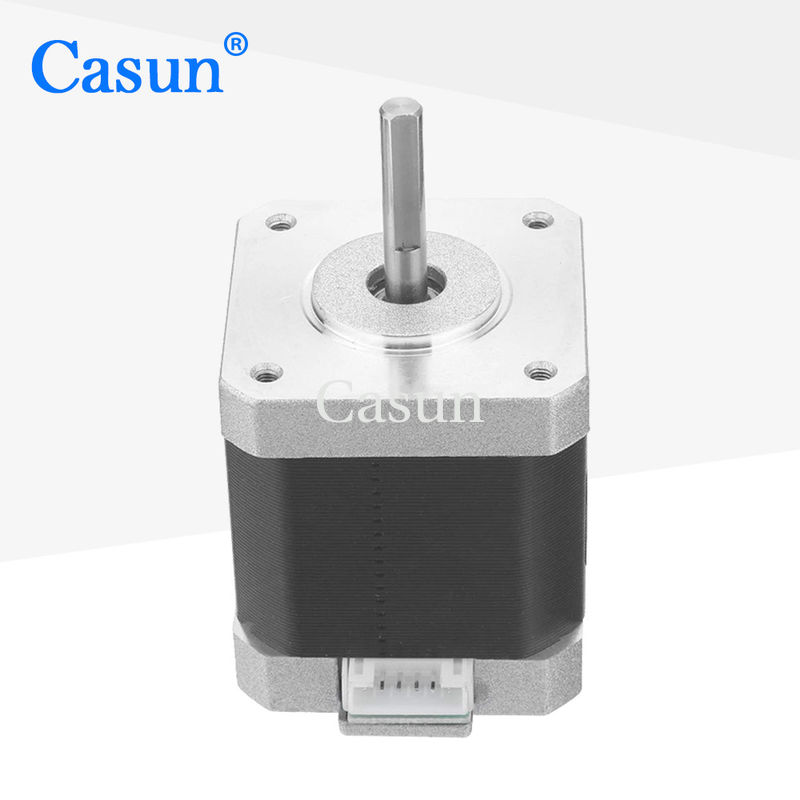

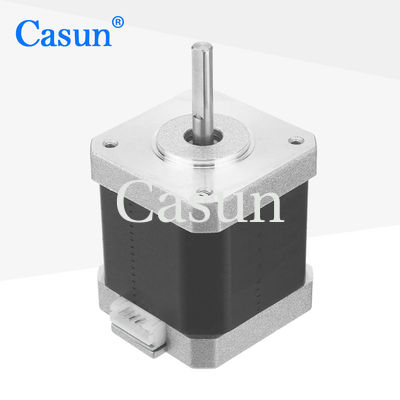

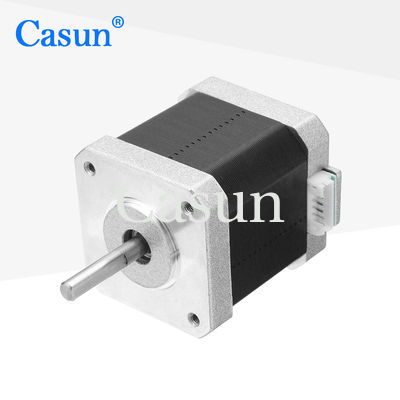

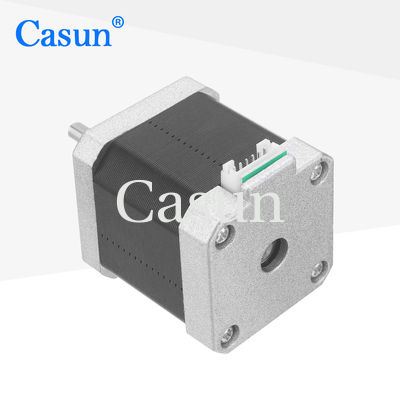

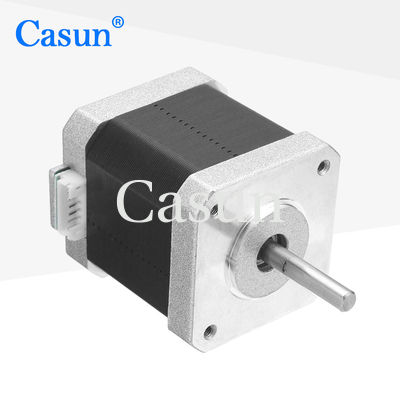

【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor
【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor
【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor
【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor
【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor
【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor
【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor

【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 42SHD0441-24B1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:
Step Angel:
1.8°
Holding Torque:
420mN.m
Current:
1.2A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
420mN.m
Current:
1.2A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The NEMA 17 motor can provide higher torque, enabling it to drive larger loads while maintaining relatively high speeds and smooth motion.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.



Features:

  • Bipolar or unipolar versions available

  • For high-tech industry and electronic industry equipment

  • Both contract manufacturing and specialised services are available from us. Needed dealers!

  • Professional drivetrain solution specialist

  • Buy with assurance thanks to the ten-year warranty





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

420 mN.m

Resistance

3.2 ohm

Inductance

6.0 mH

Rotor Inertia

72 g-cm²

Motor weight

0.38 kg

Number of leads

4

Connection

Bipolar

Appearance

【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor 0

Dimensions

【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor 2 【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor 3 【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor 4 【42SHD0441】42x42x48mm 1.8 Degree 2 Phase 1.2A for 3D Printer Hybrid Nema 17 Stepper Motor 5



Please click the "Get a quote" button below to tell us your requirements.
