products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

【42SHD0407】Hight torque Bipolar 1.8 Degree 42X42mm NEMA 17  Hybrid Step Motor for CNC Kit with Certification

name

【42SHD0407】Hight torque Bipolar 1.8 Degree 42X42mm NEMA 17  Hybrid Step Motor for CNC Kit with Certification

Brand Name: Casun
Model Number: 42SHD0407-24B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
350mN.m
Current:
1.2A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

42SHD0407 NEMA 17 Hybrid Step Motor

Product Description

The 42mm Hybrid Stepper Motor Series usually has higher power and torque compared to a large-sized stepper motor.

Compared to smaller size stepper motors, 42mm stepper motors typically have higher rotational speed capabilities.



Features:

  • The best solution will be offered by our engineers in contact with you within 48 hours

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Professional research and development manufacturing

  • Established in China for 12 years and has served more than 800 customers





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

350 mN.m

Resistance

2.2 ohm

Inductance

2.8 mH

Rotor Inertia

72 g-cm²

Motor weight

0.38 kg

Number of leads

4

Connection

Bipolar

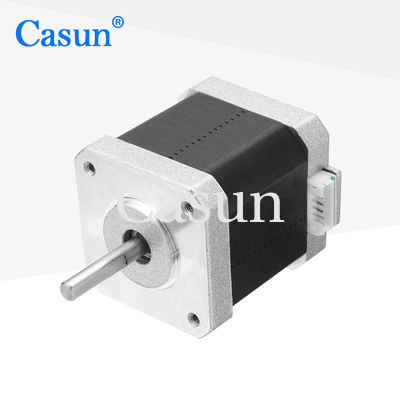

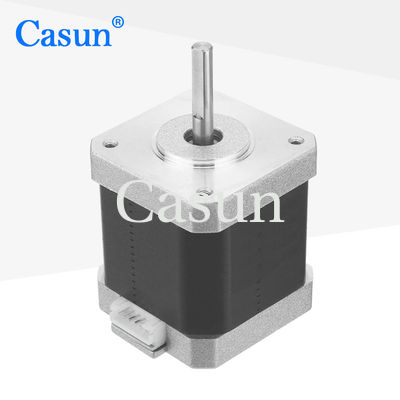

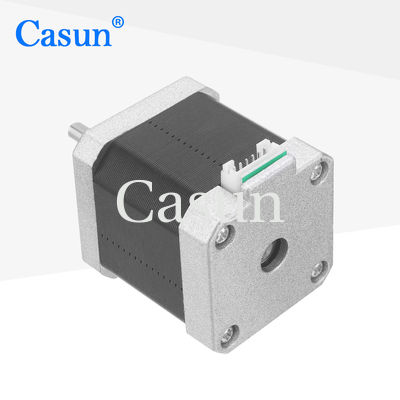

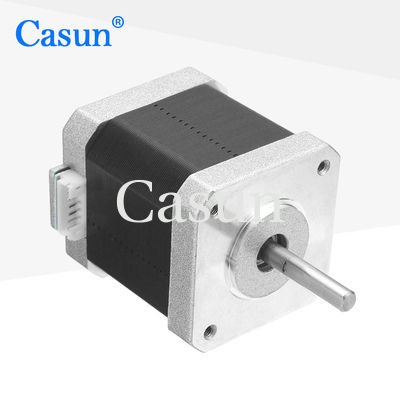

Appearance

【42SHD0407】Hight torque Bipolar 1.8 Degree 42X42mm NEMA 17  Hybrid Step Motor for CNC Kit with Certification 0

Dimensions

【42SHD0407】Hight torque Bipolar 1.8 Degree 42X42mm NEMA 17  Hybrid Step Motor for CNC Kit with Certification 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD0407】Hight torque Bipolar 1.8 Degree 42X42mm NEMA 17  Hybrid Step Motor for CNC Kit with Certification 2 【42SHD0407】Hight torque Bipolar 1.8 Degree 42X42mm NEMA 17  Hybrid Step Motor for CNC Kit with Certification 3 【42SHD0407】Hight torque Bipolar 1.8 Degree 42X42mm NEMA 17  Hybrid Step Motor for CNC Kit with Certification 4 【42SHD0407】Hight torque Bipolar 1.8 Degree 42X42mm NEMA 17  Hybrid Step Motor for CNC Kit with Certification 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

42SHD0407 NEMA 17 Hybrid Step Motor
