Home > products > Hybrid Stepper Motor > 1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar

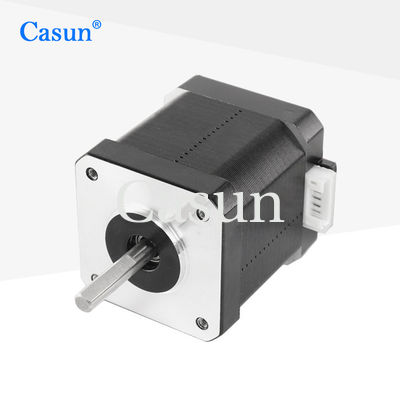

1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar
1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar
1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar
1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar
1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar
1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar

1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD0411-24B2H

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

1.8A 0.52Nm NEMA 17

,

0.52Nm NEMA 17 Stepper Motor

,

42×42×48mm Bipolar Stepper Motor

Step Angel:
1.8°
Holding Torque:
520mN.m
Current:
1.8A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
520mN.m
Current:
1.8A
Motor Length:
48mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

In a range of sizes, the 42mm Hybrid Stepper Motor Series provides strong holding torque.

To lessen vibration and produce a greater step resolution, use with a microstepping driver.

Select a standard version or ask for a specially configured version.



Features:

  • Versions in unipolar or bipolar are offered

  • For electronic industrial equipment and high-tech industry equipment

  • Available in variations with a single or double shaft

  • High accuracy and torque

  • Expert manufacturing research and development





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.5 A

Holding Torque

520 mN.m

Resistance

1.8 ohm

Inductance

3.2 mH

Rotor Inertia

72 g-cm²

Motor weight

0.4 kg

Number of leads

4

Connection

Bipolar

Appearance

1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar 0

Dimensions

1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar 2 1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar 3 1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar 4 1.8A 0.52Nm NEMA 17 Stepper Motor 1.8 42×42×48mm Bipolar Or Unipolar 5



Please click the "Get a quote" button below to tell us your requirements.
