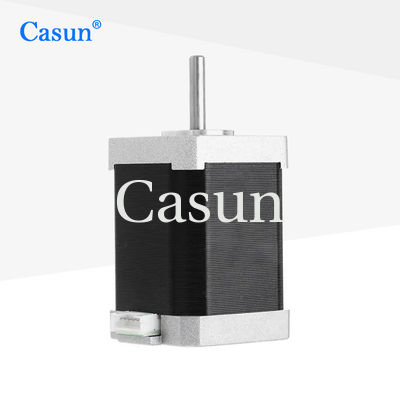

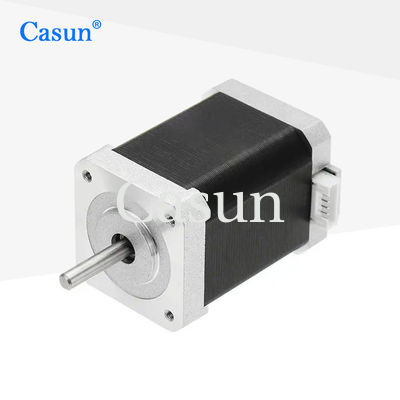

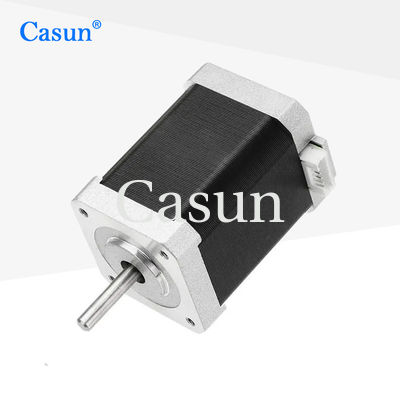

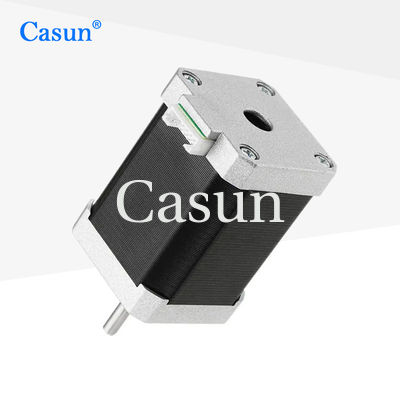

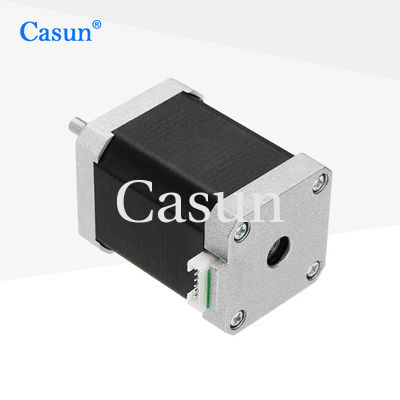

1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision

Name: 1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision
Brand: GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD
SKU: 42SHD0807-20B
Price: 3.14 USD
Availability: InStock

Brand Name:	Casun
Model Number:	42SHD0807-20B
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

550mN.m

Current:

1.2A

Motor Length:

60mm

Shaft:

Milling Flat Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Robot Arm Nema 17 Stepping Motor

1.2A Robot Arm Nema 17

Nema 17 Stepping Motor 1.8 Degree

Product Description

1.2A Robot Arm Nema 17 Stepping Motor 1.8 Degree 2 Phase High Precision

Product Overview

42SHD0807-20B - 42x42x60mm 1.8 Degree 2 Phase 1.2A Nema 17 Stepper Motor For Robot With CE ISO ROHS

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features

High torque and high precision
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Established in China for 12 years and has served more than 800 customers
Our engineers will be in touch within 48 hours to provide the best solution

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.2 A
Holding Torque	550 mN.m
Resistance	2.4 ohm
Inductance	5.8 mH
Rotor Inertia	102 g-cm²
Motor Weight	0.45 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
