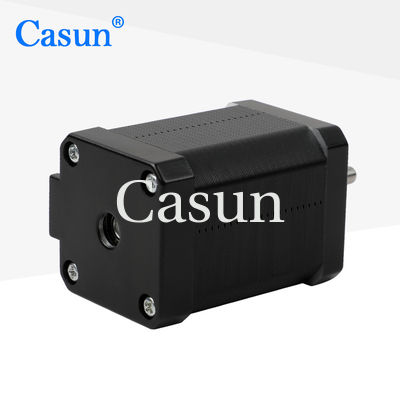

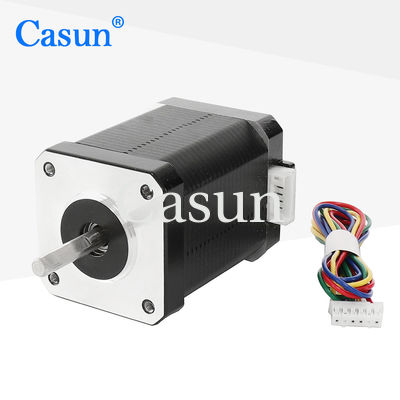

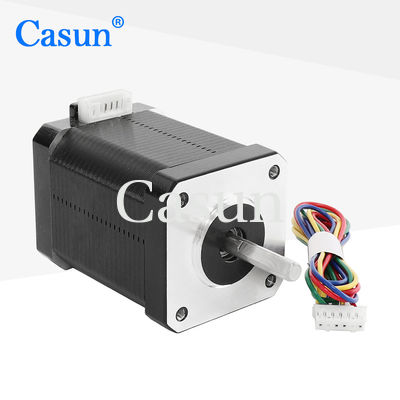

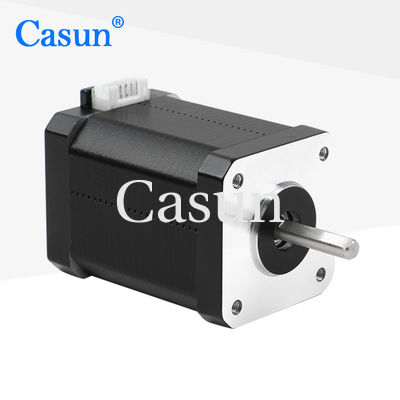

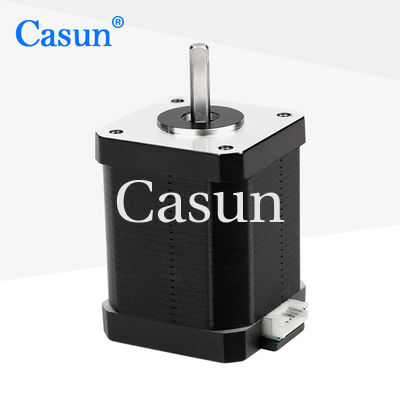

2.5A 1.1N.M NEMA 17 Stepper Motor 4 Lead For DIY CNC 3D Printer

2.5A 1.1N.M NEMA 17 Stepper Motor 4 Lead For DIY CNC 3D Printer

Brand Name:	Casun
Model Number:	42SHD0810-20BH
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

1100mN.m

Current:

2.5A

Motor Length:

60mm

Shaft:

Milling Flat Shaft 20mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

1.1N.M NEMA 17 Stepper Motor

2.5A NEMA 17 Stepper Motor

Casun 4 lead stepper motor

Product Description

2.5A 1.1N.M NEMA 17 Stepper Motor 4 Lead For DIY CNC 3D Printer

【42SHD0810】Nema 17 Stepper Motor 2.5A 1.1N.m 1.8 Degree Step 42 Motor 4-lead for DIY CNC 3D Printer

The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Features

High torque and high precision
For high-tech industry and electronic industry equipment
Professional drivetrain solution specialist
Established in China for 12 years and has served more than 800 customers
We offer custom services and accept contract manufacturing

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	2.5 A
Holding Torque	1100 mN.m
Resistance	1.7 ohm
Inductance	4.9 mH
Rotor Inertia	102 g-cm²
Motor Weight	0.48 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
