Home > products > Hybrid Stepper Motor > 0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor

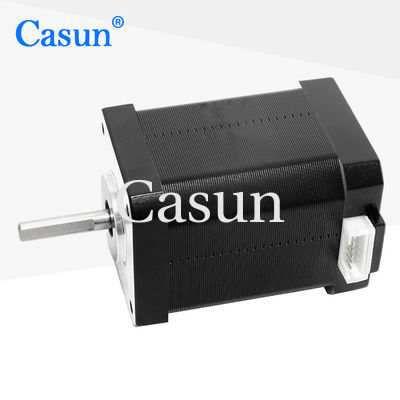

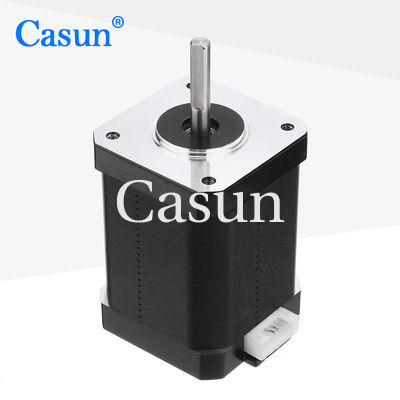

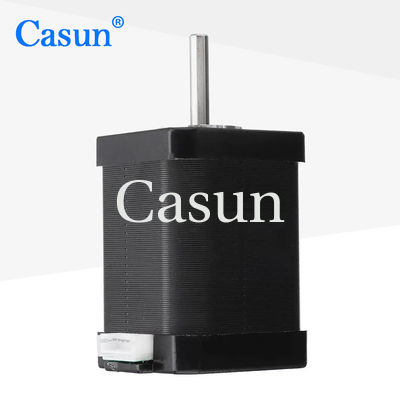

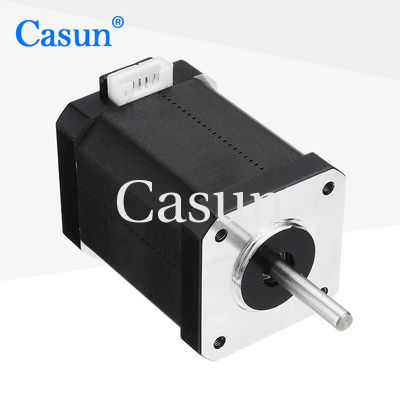

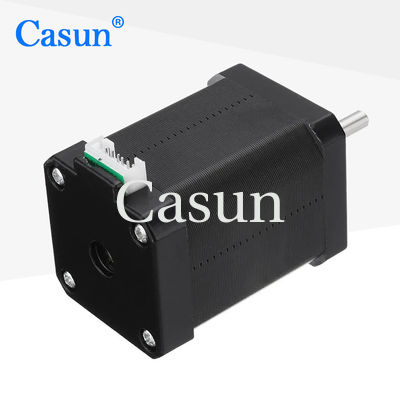

0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor
0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor
0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor
0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor
0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor
0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor
0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor

0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD0803-25BH

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

0.65N.M NEMA 17 Stepper Motor

,

60mm NEMA 17 Stepper Motor

,

60mm Nema 17 1.8 Stepper Motor

Step Angel:
1.8°
Holding Torque:
650mN.m
Current:
1.7A
Motor Length:
60mm
Shaft:
Milling Flat Shaft 25mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
650mN.m
Current:
1.7A
Motor Length:
60mm
Shaft:
Milling Flat Shaft 25mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

In medical equipment, 42mm stepper motors are often used to control equipment such as X-ray machines, CT scanners, and syringes.

Accurate positioning and motion control ensure the stability and accuracy of the equipment.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • We possess expertise in drivetrain solutions

  • Each model of our stepper motor is suitable for various applications

  • Our engineers will be in touch within 48 hours to provide the best solution

Appearance

0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor 0

Dimensions

0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor 1

Motor Specifications

Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.7 A

Holding Torque

650 mN.m

Resistance

1.65 ohm

Inductance

3.2 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor 2 0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor 3 0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor 4 0.65N.M NEMA 17 Stepper Motor 60mm Nema 17 1.8 Stepper Motor 5



Please click the "Get a quote" button below to tell us your requirements.
