35x35x20mm NEMA 14 Stepper Motor 0.4A 2 Phase Stepper Motor

name

35x35x20mm NEMA 14 Stepper Motor 0.4A 2 Phase Stepper Motor

Brand Name: Casun
Model Number: P35SHD0303-15H
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
60mN.m
Current:
0.4A
Rated Voltage:
8V
Motor Length:
20mm
Shaft:
Round Shaft 15mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

35x35x20mm NEMA 14

,

0.4A 2 Phase Stepper Motor

,

NEMA 14 2 Phase Stepper Motor

Product Description

35*35*20mm NEMA 14 Stepper Motor 0.4A 1.8 Degree 2 Phase Casun Stepper Motor

35SHD0303 series Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

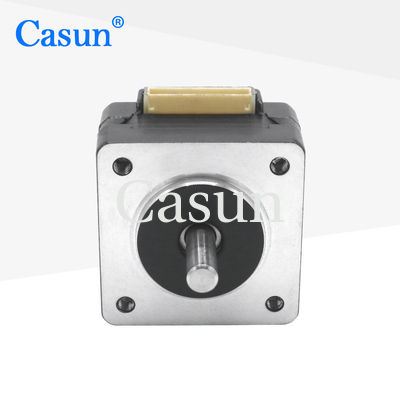

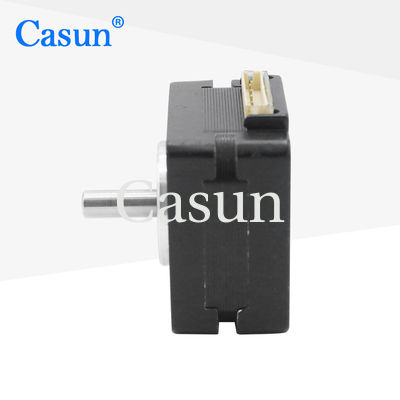

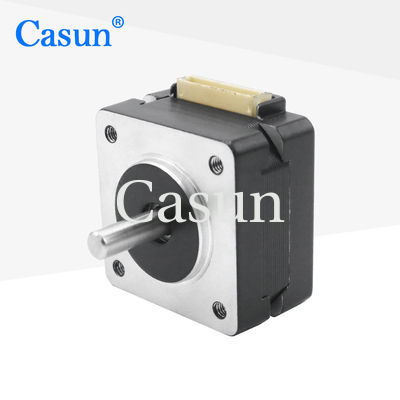

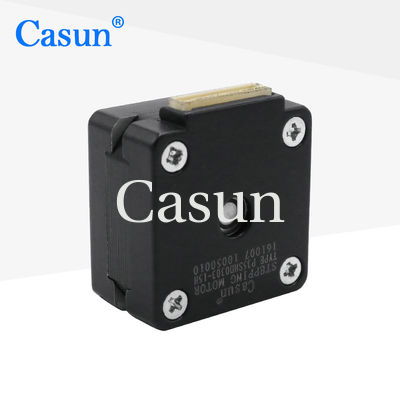

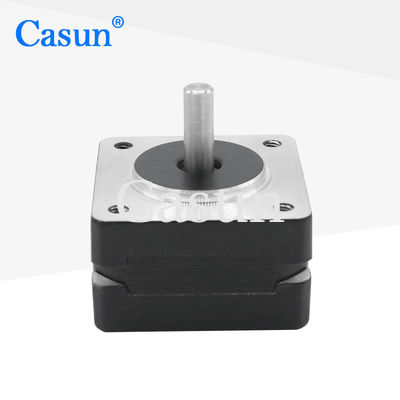

Appearance



35x35x20mm NEMA 14 Stepper Motor 0.4A 2 Phase Stepper Motor 0

Dimensions

35x35x20mm NEMA 14 Stepper Motor 0.4A 2 Phase Stepper Motor 1



Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

60 mN.m

Resistance

22 ohm

Inductance

15 mH

Rotor Inertia

10 g-cm²

Motor weight

0.09 kg

Number of leads

4

Connection

Bipolar









Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese

Options:

Encoder

Brake

Gearbox

Shaft
35x35x20mm NEMA 14 Stepper Motor 0.4A 2 Phase Stepper Motor 2 35x35x20mm NEMA 14 Stepper Motor 0.4A 2 Phase Stepper Motor 3 35x35x20mm NEMA 14 Stepper Motor 0.4A 2 Phase Stepper Motor 4 35x35x20mm NEMA 14 Stepper Motor 0.4A 2 Phase Stepper Motor 5





Please click the "Get  a quote" button below to tell us your requirements.











Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

35x35x20mm NEMA 14
