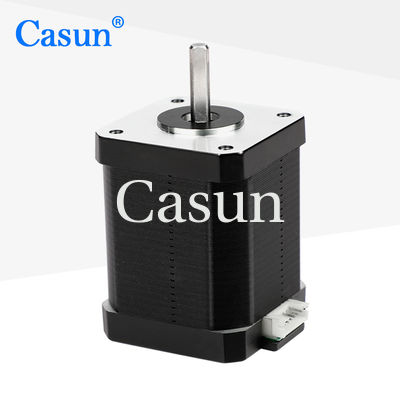

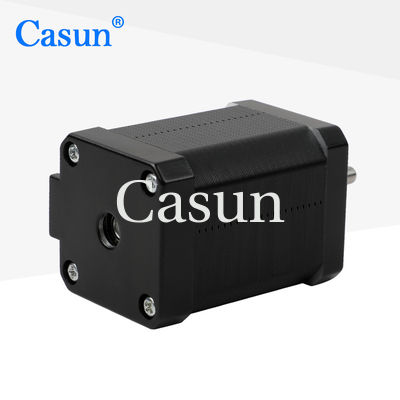

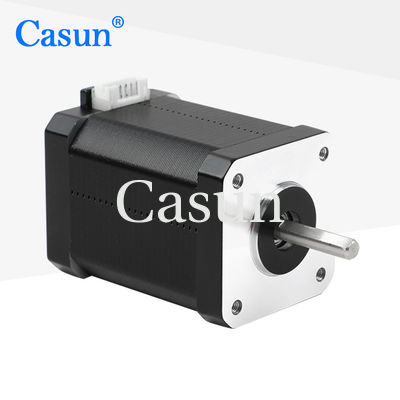

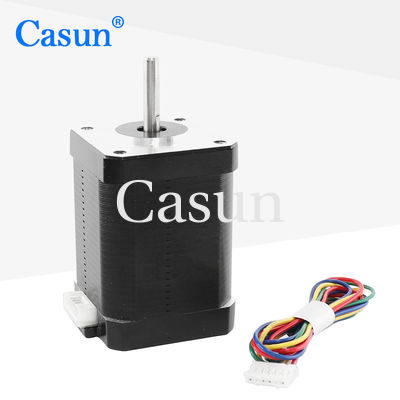

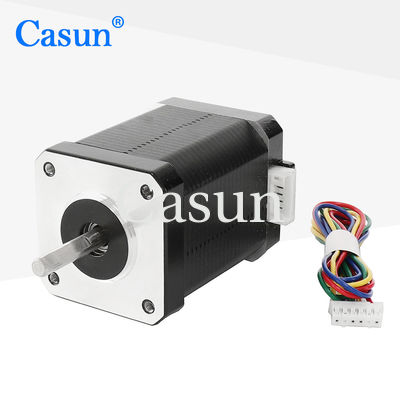

【42SHD0807】NEMA 17 HYBRID STEPPING MOTOR 42*42*60mm for MECHANICAL ARM ROBOT

name

【42SHD0807】NEMA 17 HYBRID STEPPING MOTOR 42*42*60mm for MECHANICAL ARM ROBOT

Brand Name: Casun
Model Number: 42SHD0807-20BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
550mN.m
Current:
1.2A
Motor Length:
60mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

42*42*60mm NEMA 17 HYBRID STEPPING MOTOR

,

42SHD0807 NEMA 17 HYBRID STEPPING MOTOR

,

42SHD0807 HYBRID STEPPING MOTOR

Product Description

The 42mm stepper motor is controlled using a digital driver, enabling highly programmable and precise motion control.

The stepper motor is relatively compact, but it has a high torque density.



Features:

  • High torque and high precision

  • We possess extensive expertise in drivetrain solution

  • Available in single or double shaft versions

  • Specializing in delivering personalized services is our area of expertise

  • We are fully committed to professional research, development, and manufacturing





Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1.2 A

Holding Torque

550 mN.m

Resistance

2.4 ohm

Inductance

5.8 mH

Rotor Inertia

102 g-cm²

Motor weight

0.45 kg

Number of leads

4

Connection

Bipolar

Appearance

【42SHD0807】NEMA 17 HYBRID STEPPING MOTOR 42*42*60mm for MECHANICAL ARM ROBOT 0

Dimensions

【42SHD0807】NEMA 17 HYBRID STEPPING MOTOR 42*42*60mm for MECHANICAL ARM ROBOT 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
【42SHD0807】NEMA 17 HYBRID STEPPING MOTOR 42*42*60mm for MECHANICAL ARM ROBOT 2 【42SHD0807】NEMA 17 HYBRID STEPPING MOTOR 42*42*60mm for MECHANICAL ARM ROBOT 3 【42SHD0807】NEMA 17 HYBRID STEPPING MOTOR 42*42*60mm for MECHANICAL ARM ROBOT 4 【42SHD0807】NEMA 17 HYBRID STEPPING MOTOR 42*42*60mm for MECHANICAL ARM ROBOT 5



Please click the "Get a quote" button below to tell us your requirements.
