Hybrid Stepper Motor
Created with Pixso.

Nema17 CNC Stepper motor 42x42mm 1.8 degree 1.7Amp 550mN.m 0.46kg hybrid stepper motor with high torque

Nema17 CNC Stepper motor 42x42mm 1.8 degree 1.7Amp 550mN.m 0.46kg hybrid stepper motor with high torque

Brand Name: Casun
Model Number: 42SHD4456-24DH
MOQ: 1PC
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
550mN.m
Current:
1.7A
Motor Length:
48mm
Shaft:
24MM
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.7Amp Nema17 CNC Stepper motor

,

0.46kg Nema17 CNC Stepper motor

Product Description

【35SHD4001】35x35x26mm 1.8 Degree 4 Phase Nema 14 Stepper Motor 10N.cm(70.6oz.in) for Robot

The 35mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

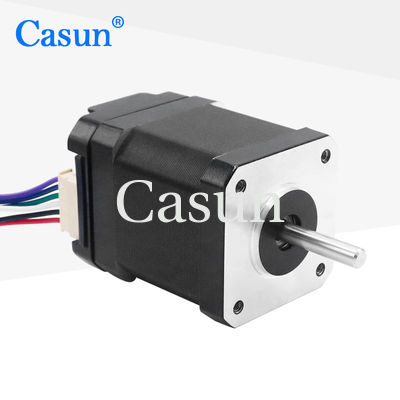

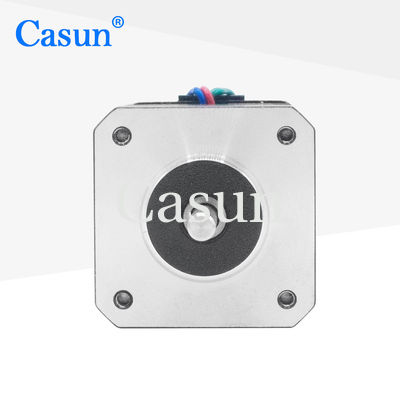

Appearance



Nema17 CNC Stepper motor 42x42mm 1.8 degree 1.7Amp 550mN.m 0.46kg hybrid stepper motor with high torque 0

Dimensions

Nema17 CNC Stepper motor 42x42mm 1.8 degree 1.7Amp 550mN.m 0.46kg hybrid stepper motor with high torque 1



Motor Specifications

Step Angel

1.8 °

Fram Size

42mm

Number of Phase

2 Phase

Rated Current

1.7 Amp

Holding Torque

550 mN.m

Resistance

2.2 ohm

Inductance

3.8 mH

Rotor Inertia

72 g-cm²

Motor weight

0.46kg

Number of leads

0

Connection

Bipolar









Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
