0.75A 4.8V Nema 14 3D Printer Stepper Motor 35x35mm 230mN.M

0.75A 4.8V Nema 14 3D Printer Stepper Motor 35x35mm 230mN.M

Brand Name:	Casun
Model Number:	P35SHD4119-24P
MOQ:	1PC
Price:	$4.2-$5.2
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROSH,ISO

Step Angel:

1.8°

Holding Torque:

230mN.m

Current:

0.75A

Motor Length:

34mm

Shaft:

Round Shaft 23.69mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Nema 14 3D Printer Stepper Motor

0.75A 4.8V Nema 14

35x35mm 3D Printer Stepper Motor

Product Description

0.75A 4.8V Nema 14 3D Printer Stepper Motor 35x35mm 230mN.M

Nema 14 Hybrid stepper motor 35x35mm 0.75A 4.8V 230mN.m for 3D printer. Also available: 20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor for medical and beauty equipment.

Motor Specifications

Step Angle	1.8°
Frame Size	35 mm
Number of Phase	2 Phase
Rated Current	0.75A
Holding Torque	230 mN.m
Resistance	6.4 ohm
Inductance	8.9 mH
Rotor Inertia	14 g-cm²
Motor Weight	0.2 kg
Number of Leads	4
Connection	Bipolar

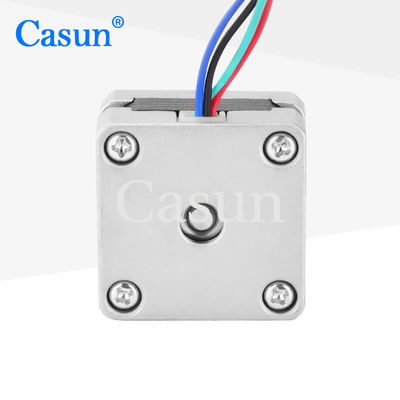

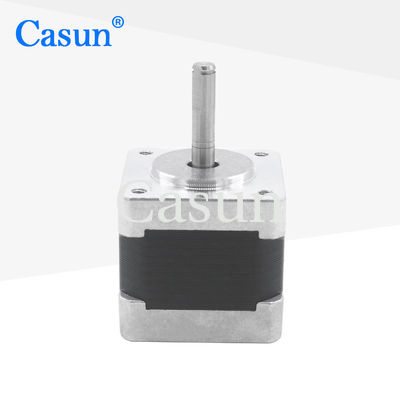

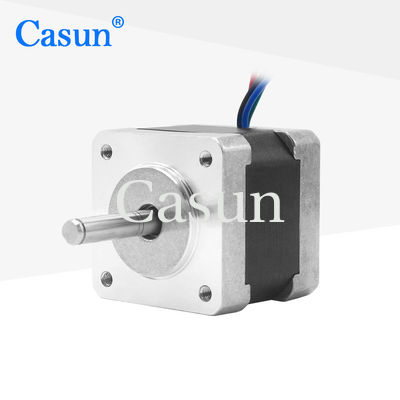

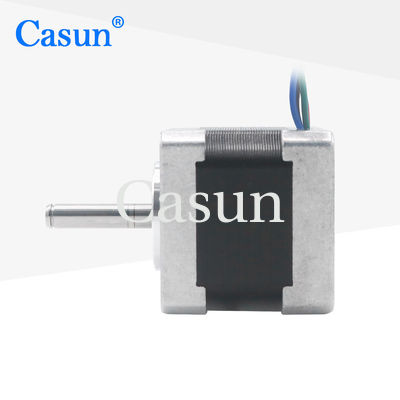

Appearance

Dimensions

Torque Curves

Torque curve diagrams available upon request

Download

Technical documentation and specifications available for download

Custom Motor Solutions

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to:

Special shafts
Winding parameters
Installation dimensions
Lead wires with special requirements
Connectors

Available Options

Encoder

Brake

Gearbox

Connector

Please click the button below to tell us your requirements and get a customized quote.

Get a Quote
