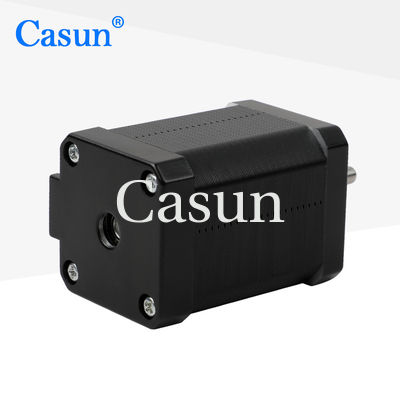

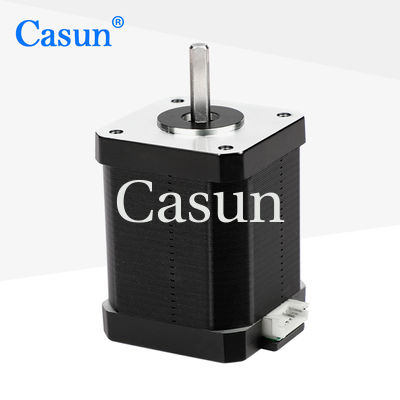

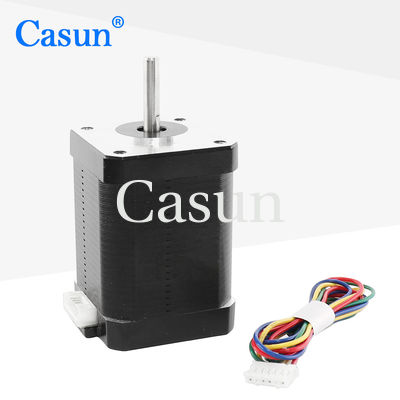

Nema17 4 Lead Stepper Motor 42x42mm 60mm 1.68A Motor for CNC XYZ 3D Printer Motor

name

Nema17 4 Lead Stepper Motor 42x42mm 60mm 1.68A Motor for CNC XYZ 3D Printer Motor

Brand Name: Casun
Model Number: 42SHD0824-20B
MOQ: 1PC
Price: $8.92-$9.96
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
650mN.m
Current:
1.68A
Motor Length:
60mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.68A Nema17 Stepper Motor

,

42x42mm Nema17 Stepper Motor

,

XYZ Nema17 Stepper Motor

Product Description

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.68 A

Holding Torque



650 mN.m

Resistance



2.1ohm

Inductance



6.2mH

Rotor Inertia



102g-cm²

Motor weight



0.48 kg

Number of leads



4

Connection



Bipolar





Appearance

Nema17 4 Lead Stepper Motor 42x42mm 60mm 1.68A Motor for CNC XYZ 3D Printer Motor 0

Dimensions

Nema17 4 Lead Stepper Motor 42x42mm 60mm 1.68A Motor for CNC XYZ 3D Printer Motor 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
