products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

1A 3.5V Casun Stepper Motor High Frequency ATM Robot Arm Nema 14

name

1A 3.5V Casun Stepper Motor High Frequency ATM Robot Arm Nema 14

Brand Name: Casun
Model Number: 35SHD4103-10B
MOQ: 1PC
Price: $4-$5.2
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
155mN.m
Current:
1A
Motor Length:
34mm
Shaft:
Round Shaft 10mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

3.5V Casun Stepper Motor

,

1A Casun Stepper Motor

,

ATM Robot Arm Nema 14

Product Description

Nema 14 Casun hybridstepper motor 1A 3.5V 155mN.m high frequency Stepping motor for ATM robot arm



20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



35 mm

Number of Phase



2 Phase

Rated Current



1A

Holding Torque



155mN.m

Resistance



3.8ohm

Inductance



5.8mH

Rotor Inertia



14g-cm²

Motor weight



0.18 kg

Number of leads



4

Connection



Bipolar

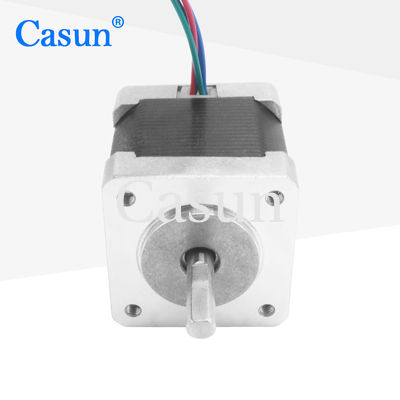

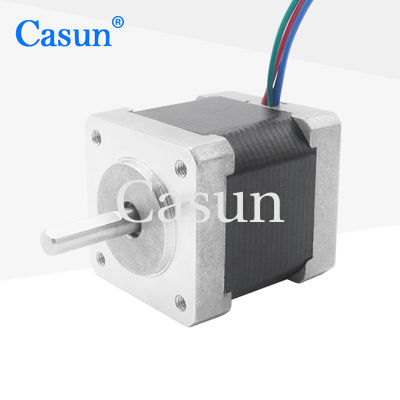

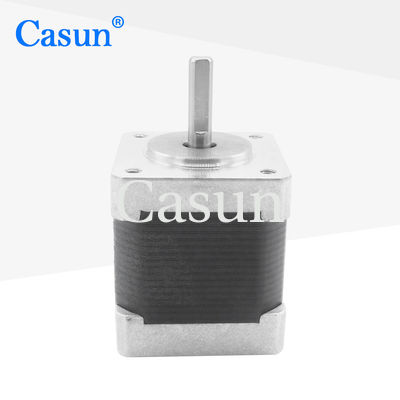

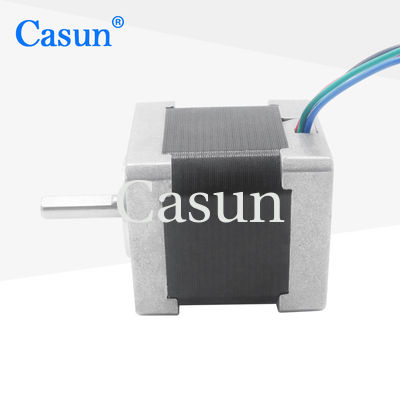

Appearance

1A 3.5V Casun Stepper Motor High Frequency ATM Robot Arm Nema 14 0

Dimensions

1A 3.5V Casun Stepper Motor High Frequency ATM Robot Arm Nema 14 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.











Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

3.5V Casun Stepper Motor
