CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg

name

CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg

Brand Name: Casun
Model Number: P35SHD0303-15H
MOQ: 1PC
Price: $3.29-$4.46
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
60mN.m
Current:
0.4A
Motor Length:
15mm
Shaft:
Round Shaft 22mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

CNC Beauty Equipment NEMA 14

,

NEMA 14 Stepper Motor 0.4A

,

35X23mm NEMA 14 Stepper Motor

Product Description

Nema 14 Casun Stepper Motor 0.4A 35X23mm 60mN.m 1.8° 2-Phase Stepping Motor for CNC beauty equipment

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



35mm

Number of Phase



2 Phase

Rated Current



0.4A

Holding Torque



60mN.m

Resistance



22ohm

Inductance



15mH

Rotor Inertia



10g-cm²

Motor weight



0.09 kg

Number of leads



0

Connection



Bipolar





Appearance

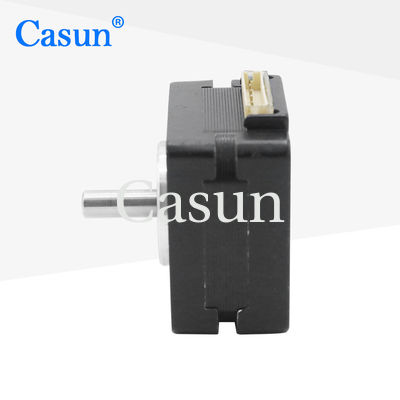

CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg 0

Dimensions

CNC Beauty Equipment NEMA 14 Stepper Motor 0.4A 35X23mm 60mNM 1.8 Deg 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
