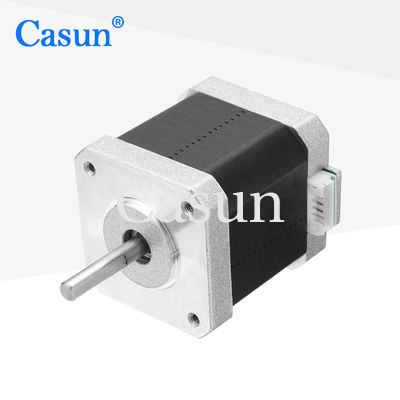

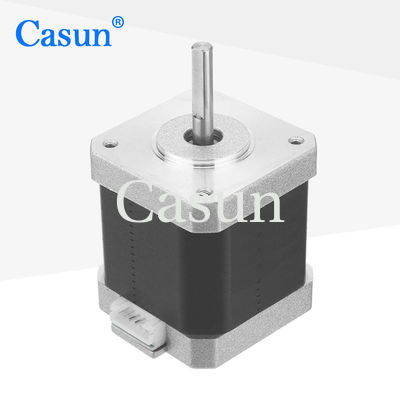

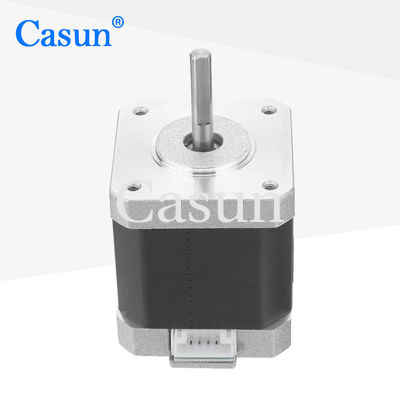

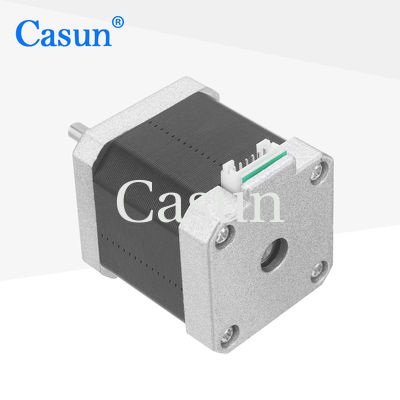

550mN.M Hybrid Stepper Motor 1.5A 4.2V Stepping Motor For CNC ATM Robot Arm

name

550mN.M Hybrid Stepper Motor 1.5A 4.2V Stepping Motor For CNC ATM Robot Arm

Brand Name: Casun
Model Number: 42SHD424-24B
MOQ: 1PC
Price: $6.46-$7.65
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Step Angel:
1.8°
Holding Torque:
550mN.m
Current:
1.5A
Motor Length:
48mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

550mN.M Hybrid Stepper Motor

,

Hybrid Stepper Motor 1.5A

,

1.5A 4.2V Stepping Motor

Product Description

Nema 14 Casun hybrid stepper motor 1.5A 4.2V 550mN.m Low price Stepping motor for CNC ATM robot arm

20x20x33mm 0.6A Casun Stepper Motor Nema 8 Mini Stepper Motor For Medical beauty equipment

Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.5A

Holding Torque



550mN.m

Resistance



2.8ohm

Inductance



5.5mH

Rotor Inertia



72g-cm²

Motor weight



0.38 kg

Number of leads



0

Connection



Bipolar





Appearance

550mN.M Hybrid Stepper Motor 1.5A 4.2V Stepping Motor For CNC ATM Robot Arm 0

Dimensions

550mN.M Hybrid Stepper Motor 1.5A 4.2V Stepping Motor For CNC ATM Robot Arm 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
