0.9 Degree NEMA 17 High-precision Stepper Motor 42*42*34mm with 4 wire

name

0.9 Degree NEMA 17 High-precision Stepper Motor 42*42*34mm with 4 wire

Brand Name: Casun
Model Number: 42SHD4910-14B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
0.9°
Holding Torque:
140mN.m
Current:
0.2A
Motor Length:
34mm
Shaft:
Round Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

42*42*34mm NEMA 17 Stepper Motor

Product Description

It can respond to commands very quickly, providing instant acceleration and deceleration, which is very useful for applications that require quick adjustment.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Affer custom services

  • Professional drivetrain solution specialist

  • Established in China for 12 years and has served more than 800 customers

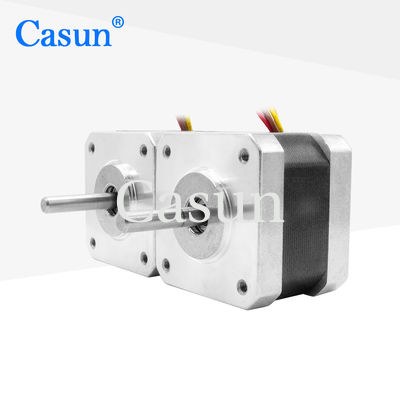

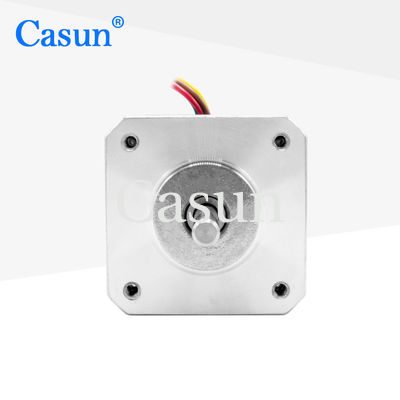

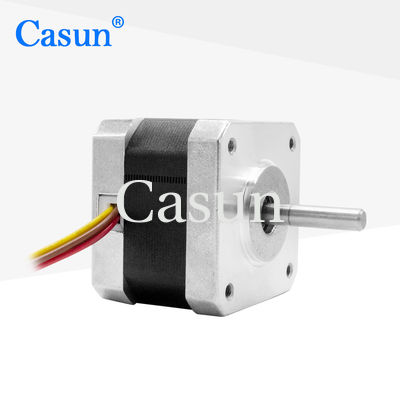

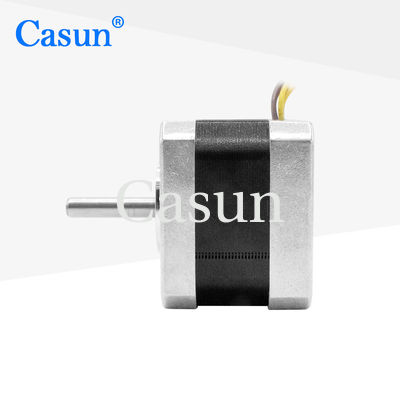

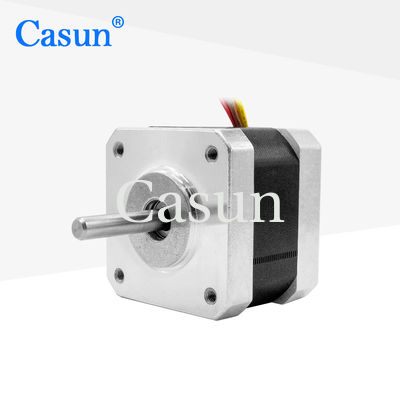

Appearance

0.9 Degree NEMA 17 High-precision Stepper Motor 42*42*34mm with 4 wire 0

Dimensions

0.9 Degree NEMA 17 High-precision Stepper Motor 42*42*34mm with 4 wire 1

Motor Specifications



Step Angel

0.9 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

0.2 A

Holding Torque

140 mN.m

Resistance

60 ohm

Inductance

58 mH

Rotor Inertia

38 g-cm²

Motor weight

0.2 kg

Number of leads

5

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
0.9 Degree NEMA 17 High-precision Stepper Motor 42*42*34mm with 4 wire 2 0.9 Degree NEMA 17 High-precision Stepper Motor 42*42*34mm with 4 wire 3 0.9 Degree NEMA 17 High-precision Stepper Motor 42*42*34mm with 4 wire 4 0.9 Degree NEMA 17 High-precision Stepper Motor 42*42*34mm with 4 wire 5



Please click the "Get a quote" button below to tell us your requirements.
