Home > products > Hybrid Stepper Motor > Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices

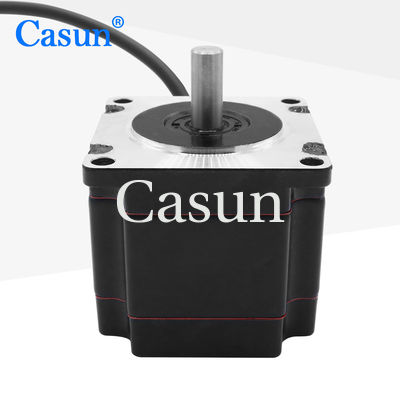

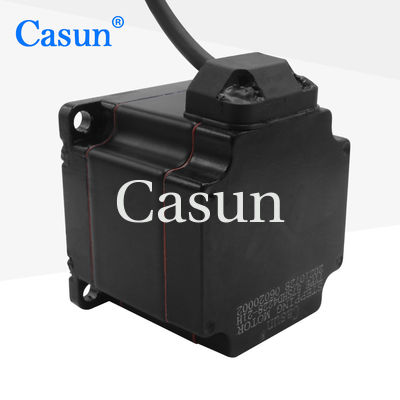

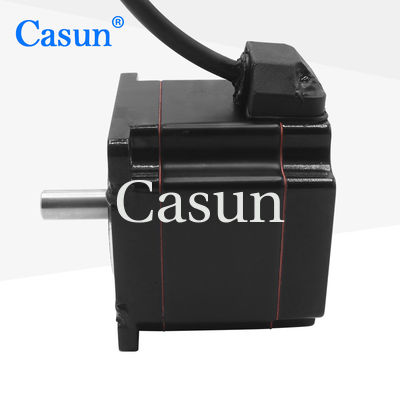

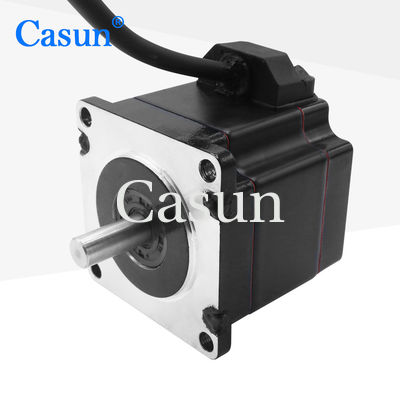

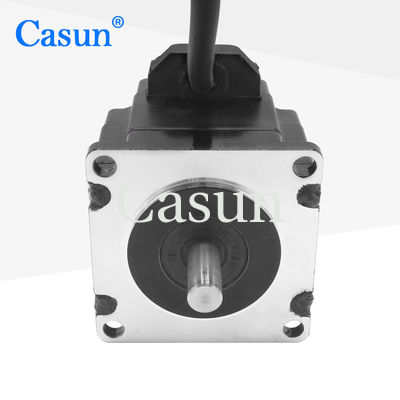

Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices
Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices
Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices
Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices
Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices
Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices
Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices

Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: F57SHD4228-21H

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
High Light:

57SHD4228 Hybrid Stepper Motor

,

Waterproof 51mm Hybrid Stepper Motor

Step Angel:
1.8°
Holding Torque:
1100mN.m
Current:
2.5A
Motor Length:
51mm
Shaft:
Round Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
1100mN.m
Current:
2.5A
Motor Length:
51mm
Shaft:
Round Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The NEMA 23 waterproof stepper motor has been specially designed and sealed.

It can adapt to harsh environmental conditions and therefore has high reliability and stability.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Professional research and development manufacturing

  • We offer custom services and accept contract manufacturing

  • Having operated in China for 12 years, we have catered to over 800 customers





Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.5 A

Holding Torque

1100 mN.m

Resistance

1.15 ohm

Inductance

3.3 mH

Rotor Inertia

220 g-cm²

Motor weight

0.62 kg

Number of leads

4

Connection

Bipolar

Appearance

Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices 0

Dimensions

Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices 2 Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices 3 Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices 4 Waterproof 57SHD4228 NEMA 23 Hybrid Stepper Motor 2 Phase 51mm Body 1.16N.M For Smart Devices 5



Please click the "Get a quote" button below to tell us your requirements.
