57SHD0846 NEMA 23 Stepping Motor 57*57*76mm 1.7A 1.8N.M For CNC Machine

name

57SHD0846 NEMA 23 Stepping Motor 57*57*76mm 1.7A 1.8N.M For CNC Machine

Brand Name: Casun
Model Number: 57SHD0846-20BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1800mN.m
Current:
1.7A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 24mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

57SHD0846 NEMA 23 Stepping Motor

,

1.7A NEMA 23 Stepping Motor

Product Description

The high precision and programmability of stepper motors make them very suitable for applications that require torque and precise position control.

Conveyor belt, drum, cutting machine, coating machine.



Features:

  • Our engineers will contact you within two days to offer the most effective solution

  • For high-tech industry and electronic industry equipment

  • Accept contract manufacturing

  • A 12-year presence in China, serving over 800 clients

  • High torque and high precision

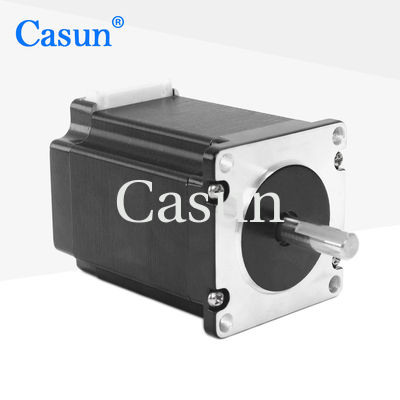

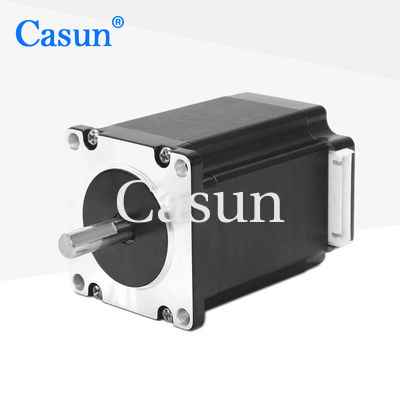

Appearance

57SHD0846 NEMA 23 Stepping Motor 57*57*76mm 1.7A 1.8N.M For CNC Machine 0

Dimensions

57SHD0846 NEMA 23 Stepping Motor 57*57*76mm 1.7A 1.8N.M For CNC Machine 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

1.7 A

Holding Torque

1800 mN.m

Resistance

6.6 ohm

Inductance

25 mH

Rotor Inertia

460 g-cm²

Motor weight

1 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

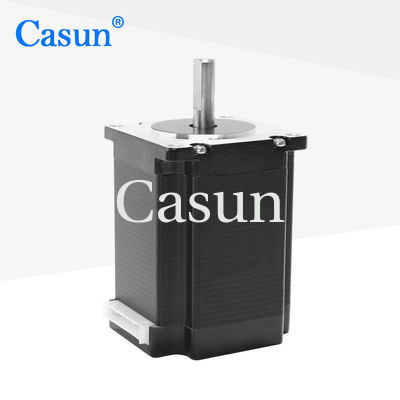

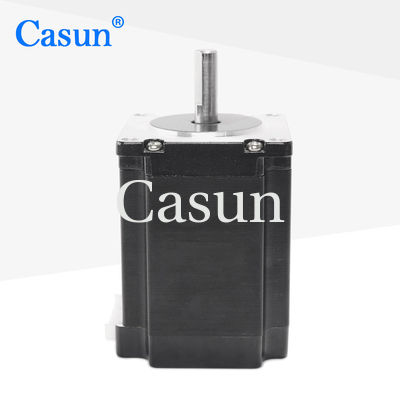

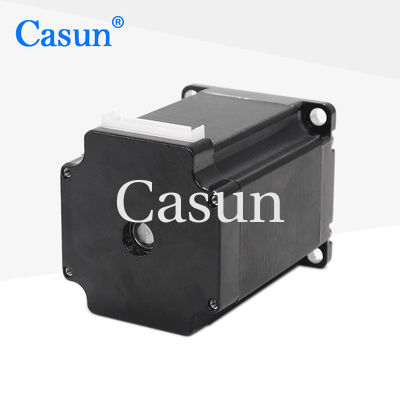

57SHD0846 NEMA 23 Stepping Motor 57*57*76mm 1.7A 1.8N.M For CNC Machine 2 57SHD0846 NEMA 23 Stepping Motor 57*57*76mm 1.7A 1.8N.M For CNC Machine 3 57SHD0846 NEMA 23 Stepping Motor 57*57*76mm 1.7A 1.8N.M For CNC Machine 4 57SHD0846 NEMA 23 Stepping Motor 57*57*76mm 1.7A 1.8N.M For CNC Machine 5



Please click the "Get a quote" button below to tell us your requirements.
