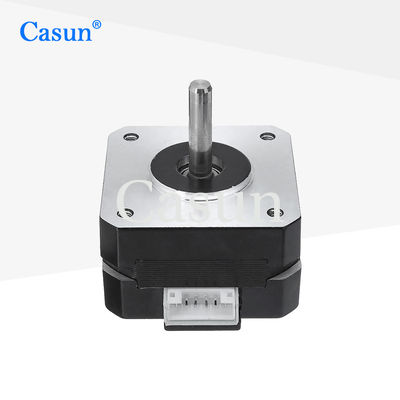

130mN.M Holding Torque Nema 17 Stepper Motor 42*42*20mm 2 Phase
  • 130mN.M Holding Torque Nema 17 Stepper Motor 42*42*20mm 2 Phase
  • 130mN.M Holding Torque Nema 17 Stepper Motor 42*42*20mm 2 Phase
  • 130mN.M Holding Torque Nema 17 Stepper Motor 42*42*20mm 2 Phase
  • 130mN.M Holding Torque Nema 17 Stepper Motor 42*42*20mm 2 Phase
  • 130mN.M Holding Torque Nema 17 Stepper Motor 42*42*20mm 2 Phase

130mN.M Holding Torque Nema 17 Stepper Motor 42*42*20mm 2 Phase

Place of Origin CHINA
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 42SHD4950-20BH
Product Details
Step Angel:
1.8°
Holding Torque:
130mN.m
Current:
1A
Motor Length:
20mm
Shaft:
Round Shaft 20mm Length
Voltage:
3.5V
High Light:

130mN.M Nema 17 Stepper Motor

,

2 Phase Nema 17 Stepper Motor

Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$4.11-$6
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

The thickness of the NEMA 17 ultra-thin stepper motor is very thin, so it has strong plasticity and applicability, and can be widely used in various occasions.

It has extremely high rotational accuracy and dynamic stability, without any out of step phenomenon, and has good load performance and rotational stability.



Features:

  • Bipolar or unipolar versions available

  • Our engineers will be in touch within 48 hours to provide the best solution

  • Available in single or double shaft versions

  • For high-tech industry and electronic industry equipment.

  • Customizations on request





Appearance

130mN.M Holding Torque Nema 17 Stepper Motor 42*42*20mm 2 Phase 0

Dimensions 130mN.M Holding Torque Nema 17 Stepper Motor 42*42*20mm 2 Phase 1



Motor Specifications



Step Angel

1.8 °

Fram Size

42 mm

Number of Phase

2 Phase

Rated Current

1 A

Holding Torque

130 mN.m

Resistance

3.5 ohm

Inductance

4.5 mH

Rotor Inertia

15 g-cm²

Motor weight

0.2 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels

Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;

Language Spoken:English,Chinese,Japanese

Options:

Encoder

Brake

Gearbox

Shaft
