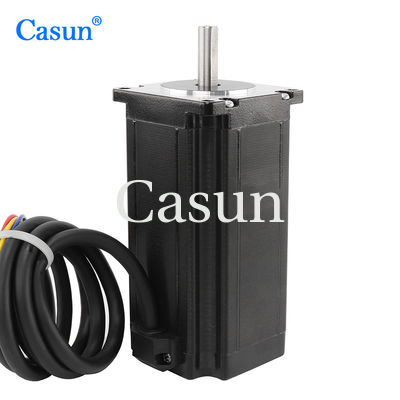

High Torque NEMA 23 112mm Body Micro Stepper Motor 3.0N.M For Robot

name

High Torque NEMA 23 112mm Body Micro Stepper Motor 3.0N.M For Robot

Brand Name: Casun
Model Number: 57SHD4974-21BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
3.0N.m
Current:
4.0A
Motor Length:
112mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

112mm Body Micro Stepper Motor

,

NEMA 23 Micro Stepper Motor

,

High Torque Micro Stepper Motor

Product Description

2 Phase 1.8 Degree NEMA 23 112mm body Micro Stepper Motor 3.0N.m for Robot



The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Provide "multiple international certifications"

  • Established in China for 12 years and has served more than 800 customers

  • High torque and high precision

Appearance

High Torque NEMA 23 112mm Body Micro Stepper Motor 3.0N.M For Robot 0

Dimensions

High Torque NEMA 23 112mm Body Micro Stepper Motor 3.0N.M For Robot 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

4.0 A

Holding Torque

3.0 N.m

Resistance

1.6 ohm

Inductance

6.8 mH

Rotor Inertia

800 g-cm²

Motor weight

1.7 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
High Torque NEMA 23 112mm Body Micro Stepper Motor 3.0N.M For Robot 2 High Torque NEMA 23 112mm Body Micro Stepper Motor 3.0N.M For Robot 3 High Torque NEMA 23 112mm Body Micro Stepper Motor 3.0N.M For Robot 4 High Torque NEMA 23 112mm Body Micro Stepper Motor 3.0N.M For Robot 5



Please click the "Get a quote" button below to tell us your requirements.
