575741mm Hybrid Stepper Motor Nema 23 Bipolar 1.8deg 650mN.M For 3D Printer

575741mm Hybrid Stepper Motor Nema 23 Bipolar 1.8deg 650mN.M For 3D Printer

Brand Name:	Casun
Model Number:	57SHD0026-25
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

0.65N.m

Current:

2.0A

Motor Length:

41mm

Shaft:

Round Shaft 25mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Hybrid Stepper Motor Nema 23

Hybrid Stepper Motor 1.8deg

Product Description

57×57×41mm Hybrid Stepper Motor Nema 23 Bipolar 1.8° 650mN·m For 3D Printer

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

High torque and high precision
Offer custom services
Provide multiple international certifications
Established in China for 12 years and has served more than 800 customers

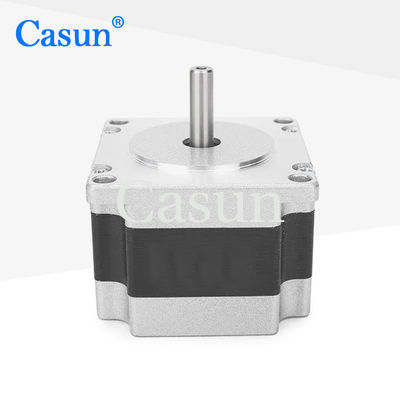

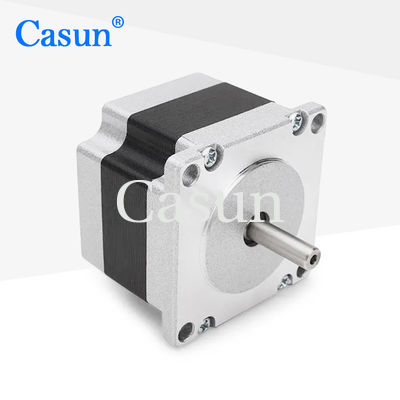

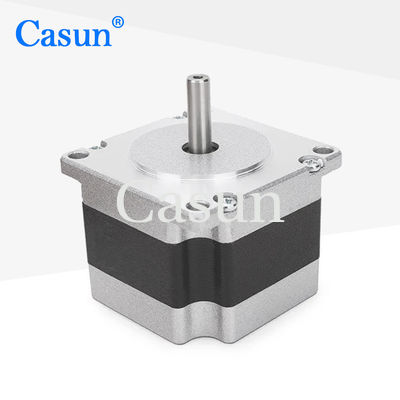

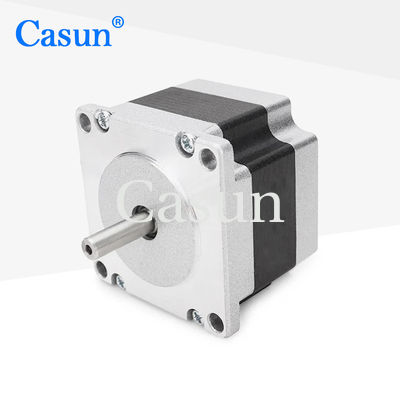

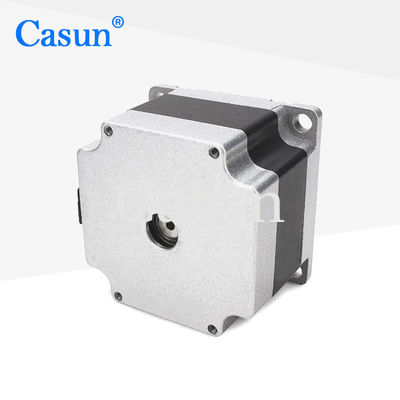

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	0.7 A
Holding Torque	0.4 N.m
Resistance	8.0 ohm
Inductance	13.5 mH
Rotor Inertia	135 g·cm²
Motor Weight	0.42 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6 N.m	1.8°	41 mm	D Shaft-21 mm	1.0 A
57SHD4415-21B	1.1 N.m	1.8°	54 mm	D Shaft-21 mm	3.0 A
57SHD4816-21B	2.0 N.m	1.8°	76 mm	D Shaft-21 mm	3.0 A
57SHD4913-21B	2.5 N.m	1.8°	83 mm	D Shaft-21 mm	3.0 A
57SHD4934-20B	3.0 N.m	1.8°	100 mm	D Shaft-20 mm	3.0 A

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
