0.6N.M 57x57x41mm NEMA 23 Stepping Motor Smooth Running 0.7A For CNC Kit

0.6N.M 57x57x41mm NEMA 23 Stepping Motor Smooth Running 0.7A For CNC Kit

Brand Name:	Casun
Model Number:	57SHD0021-21M
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

0.60N.m

Current:

0.7A

Motor Length:

41mm

Shaft:

Round Shaft 21mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

NEMA 23 Stepping Motor Smooth Running

0.7A NEMA 23 Stepping Motor

Product Description

0.6N.m 57x57x41mm NEMA 23 Stepping Motor Smooth running 0.7A for CNC Kit

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

High torque and high precision
Professional drivetrain solution specialist
Provide "multiple international certifications"
Established in China for 12 years and has served more than 800 customers
High torque and high precision

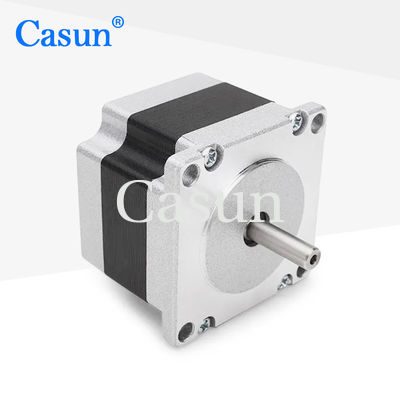

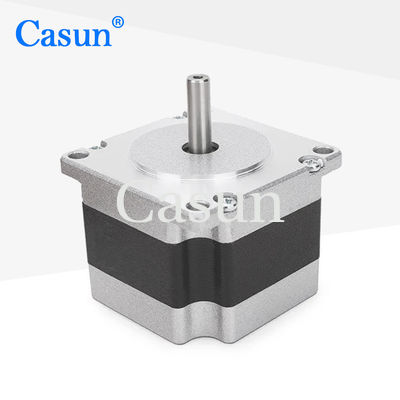

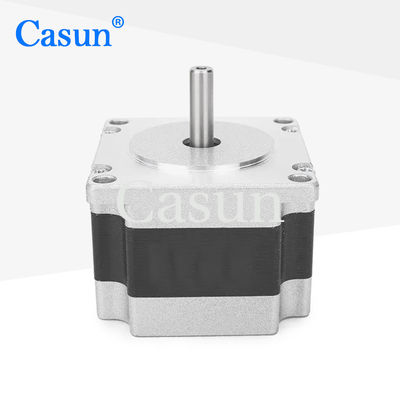

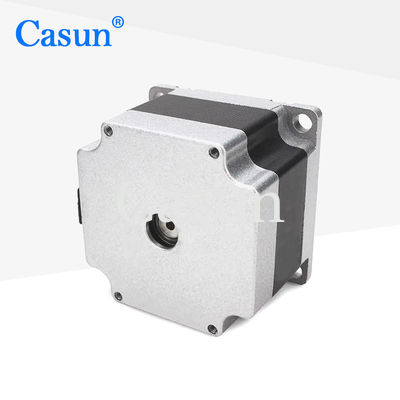

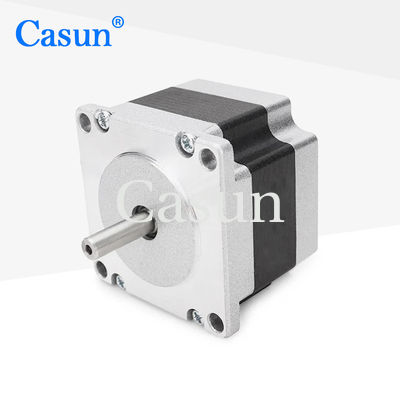

Appearance

0.6N.M 57x57x41mm NEMA 23 Stepping Motor Smooth Running 0.7A For CNC Kit 0

Dimensions

0.6N.M 57x57x41mm NEMA 23 Stepping Motor Smooth Running 0.7A For CNC Kit 1

Motor Specifications

Step Angel	1.8 °
Fram Size	57 mm
Number of Phase	2 Phase
Rated Current	0.7 A
Holding Torque	0.6 N.m
Resistance	12.4 ohm
Inductance	31 mH
Rotor Inertia	135 g-cm²
Motor weight	0.42 kg
Number of leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder	Brake	Gearbox	Shaft

Please click the "Get a quote" button below to tell us your requirements.
