Two Phase 1.8° 57 NEMA 23 Stepper Motor 57×57×41mm 10VDC 0.32Nm For SMALL CNC

name

Two Phase 1.8° 57 NEMA 23 Stepper Motor 57×57×41mm 10VDC 0.32Nm For SMALL CNC

Brand Name: Casun
Model Number: 57SHD0016-21
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
0.32N.m
Current:
0.5A
Motor Length:
41mm
Shaft:
Round Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Two Phase NEMA 23 Stepper Motor

,

10VDC NEMA 23 Stepper Motor

Product Description
Two Phase 1.8° 57 NEMA 23 Stepper Motor 57×57×41mm 10VDC 0.32Nm For SMALL CNC
The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.
Key Features
  • High torque and high precision
  • Professional drivetrain solution specialist
  • Multiple international certifications
  • Custom services and contract manufacturing available

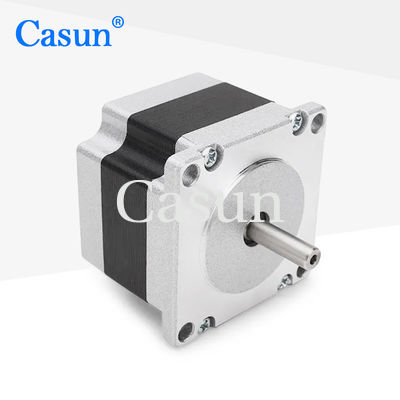

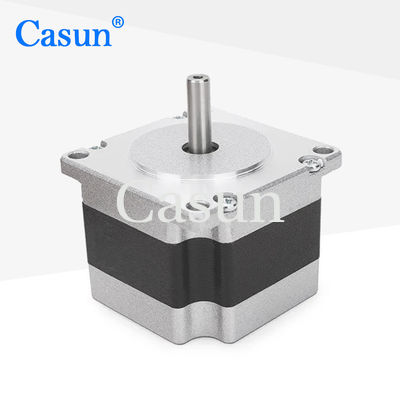

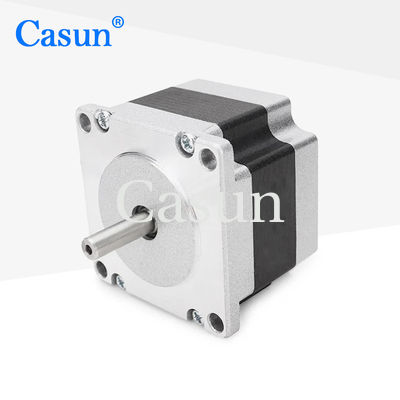

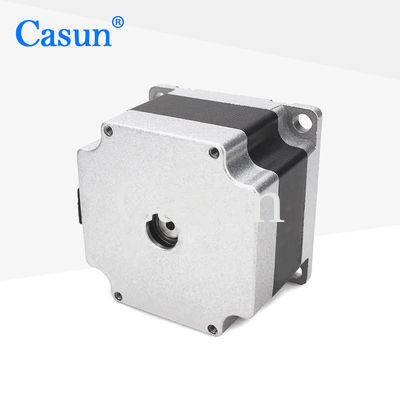

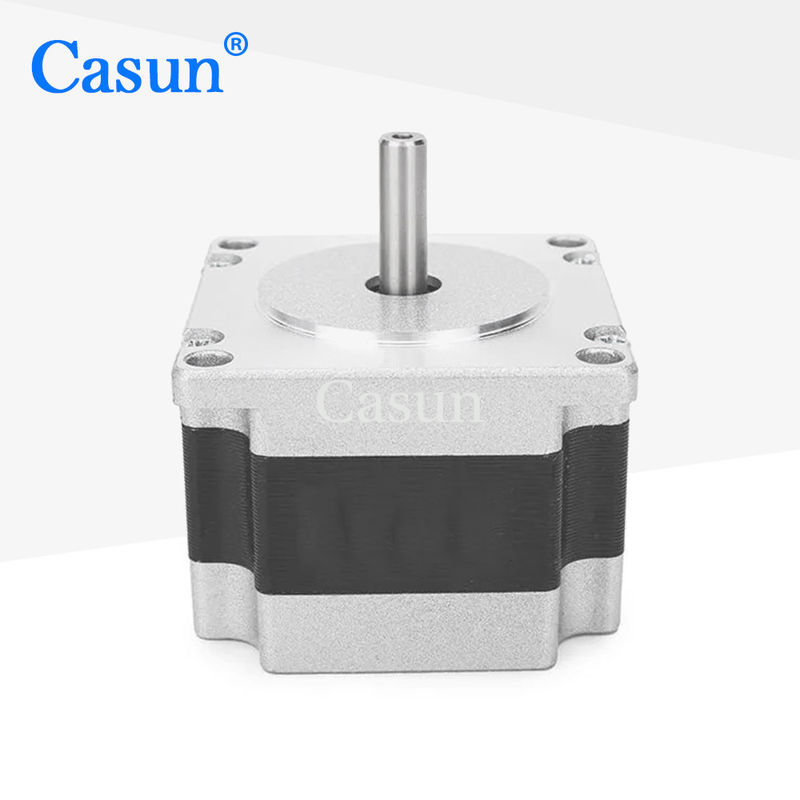

Appearance
Two Phase 1.8° 57 NEMA 23 Stepper Motor 57×57×41mm 10VDC 0.32Nm For SMALL CNC 0
Dimensions
Two Phase 1.8° 57 NEMA 23 Stepper Motor 57×57×41mm 10VDC 0.32Nm For SMALL CNC 1
Motor Specifications
Step Angle 1.8°
Frame Size 57 mm
Number of Phase 2 Phase
Rated Current 0.5 A
Holding Torque 0.32 N.m
Resistance 20 ohm
Inductance 19 mH
Rotor Inertia 135 g-cm²
Motor Weight 0.42 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Available Submodels
Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Encoder
Two Phase 1.8° 57 NEMA 23 Stepper Motor 57×57×41mm 10VDC 0.32Nm For SMALL CNC 2
Brake
Two Phase 1.8° 57 NEMA 23 Stepper Motor 57×57×41mm 10VDC 0.32Nm For SMALL CNC 3
Gearbox
Two Phase 1.8° 57 NEMA 23 Stepper Motor 57×57×41mm 10VDC 0.32Nm For SMALL CNC 4
Shaft
Two Phase 1.8° 57 NEMA 23 Stepper Motor 57×57×41mm 10VDC 0.32Nm For SMALL CNC 5
Please click the button below to tell us your requirements and get a customized quote.
Get a Quote
