Home > products > Hybrid Stepper Motor > Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation

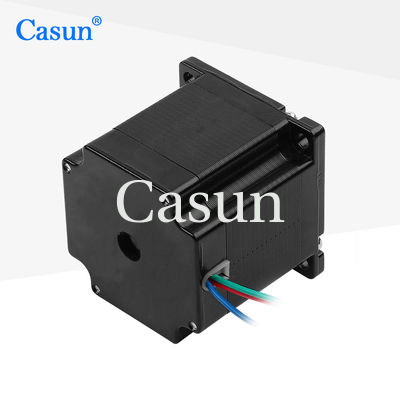

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation

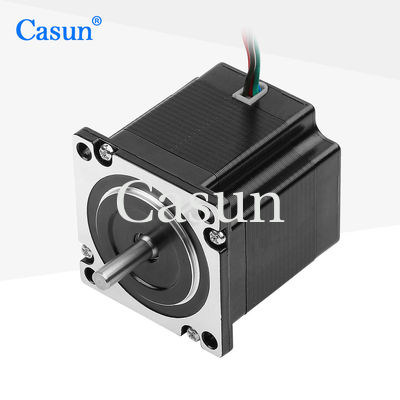

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation

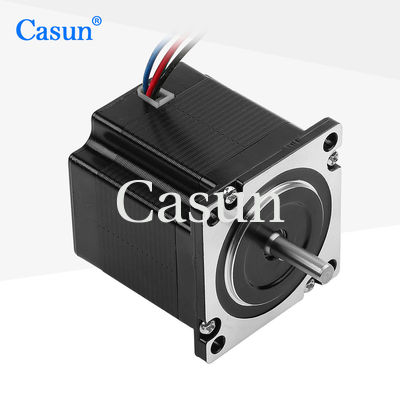

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation

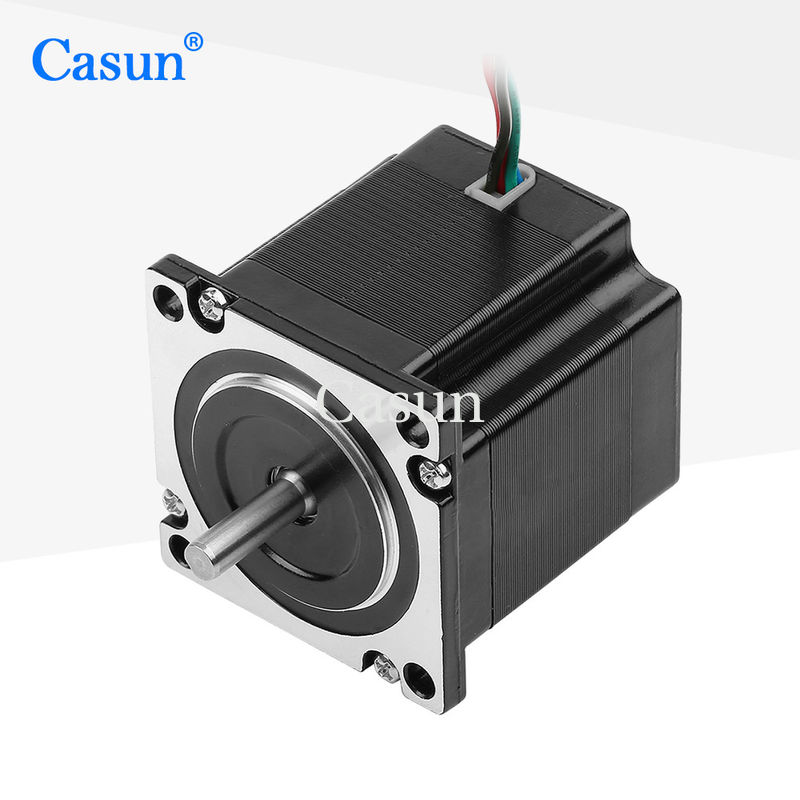

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation
Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation
Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4425-21B1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

2.5V 4 Wires Stepper Motor

,

Bipolar 4 Wires Stepper Motor

Step Angel:
1.8°
Holding Torque:
1.2N.m
Current:
2.8A
Motor Length:
54mm
Shaft:
Round Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
1.2N.m
Current:
2.8A
Motor Length:
54mm
Shaft:
Round Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 57x56mm 4 Wires Stepper Motor for Automation



The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • High torque and high precision

  • Professional drivetrain solution specialist

  • Provide "multiple international certifications"

  • We offer custom services and accept contract manufacturing

  • High torque and high precision

Appearance

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation 0

Dimensions

Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.8 A

Holding Torque

1.2 N.m

Resistance

0.9 ohm

Inductance

2.5 mH

Rotor Inertia

300 g-cm²

Motor weight

0.7 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation 2 Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation 3 Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation 4 Nema 23 Bipolar 1.2Nm 2.8A 2.5V 4 Wires Stepper Motor 57x56mm For Automation 5



Please click the "Get a quote" button below to tell us your requirements.
