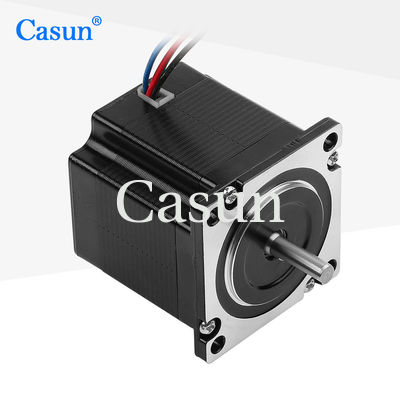

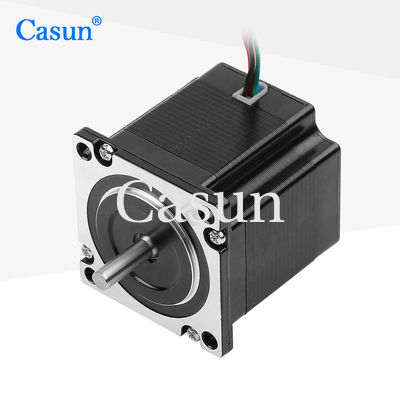

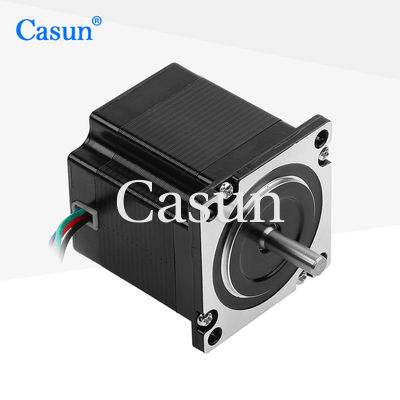

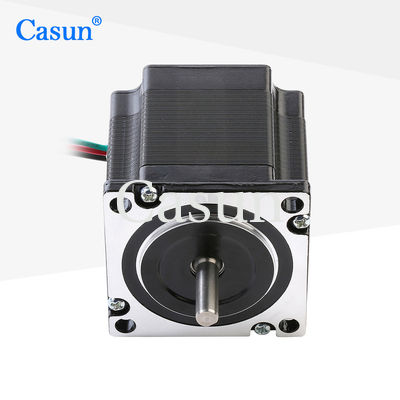

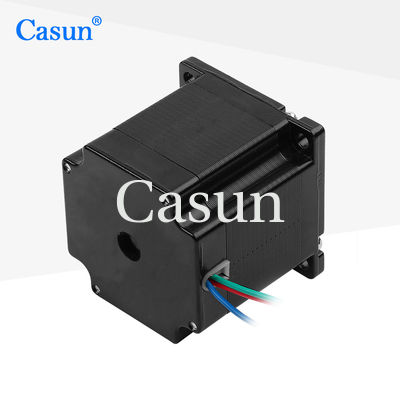

57x57x54mm 4 Wires Stepper Motor Nema 23 Bipolar 1.8deg 1.2Nm 170oz.In For XYZ Axis CNC

name

57x57x54mm 4 Wires Stepper Motor Nema 23 Bipolar 1.8deg 1.2Nm 170oz.In For XYZ Axis CNC

Brand Name: Casun
Model Number: 57SHD4407-28BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.2N.m
Current:
2.0A
Motor Length:
54mm
Shaft:
Round Shaft 28mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

4 Wires Stepper Motor Nema 23

,

Bipolar 4 Wires Stepper Motor

Product Description
57x57x54mm 4 Wires Stepper Motor Nema 23 Bipolar 1.8deg 1.2Nm 170oz.In For XYZ Axis CNC
Product Overview

Nema 23 Bipolar 1.8deg 1.2Nm (170oz.in) 57x57x54mm 4 wires stepper motor for XYZ axis CNC

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.

Key Features
  • High torque and high precision
  • Professional drivetrain solution specialist
  • Our engineers will be in touch within 48 hours to provide the best solution
  • For high-tech industry and electronic industry equipment
Appearance
57x57x54mm 4 Wires Stepper Motor Nema 23 Bipolar 1.8deg 1.2Nm 170oz.In For XYZ Axis CNC 0
Dimensions
57x57x54mm 4 Wires Stepper Motor Nema 23 Bipolar 1.8deg 1.2Nm 170oz.In For XYZ Axis CNC 1
Motor Specifications
Step Angle 1.8°
Frame Size 57 mm
Number of Phase 2 Phase
Rated Current 2.0 A
Holding Torque 1.2 N.m
Resistance 1.4 ohm
Inductance 5 mH
Rotor Inertia 260 g-cm²
Motor Weight 0.6 kg
Number of Leads 4
Connection Bipolar
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130°C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Available Models
Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A
Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder
57x57x54mm 4 Wires Stepper Motor Nema 23 Bipolar 1.8deg 1.2Nm 170oz.In For XYZ Axis CNC 2
Brake
57x57x54mm 4 Wires Stepper Motor Nema 23 Bipolar 1.8deg 1.2Nm 170oz.In For XYZ Axis CNC 3
Gearbox
57x57x54mm 4 Wires Stepper Motor Nema 23 Bipolar 1.8deg 1.2Nm 170oz.In For XYZ Axis CNC 4
Shaft
57x57x54mm 4 Wires Stepper Motor Nema 23 Bipolar 1.8deg 1.2Nm 170oz.In For XYZ Axis CNC 5
