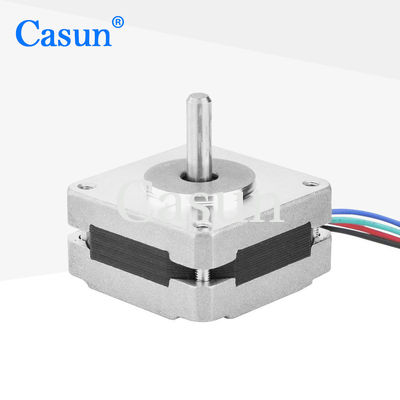

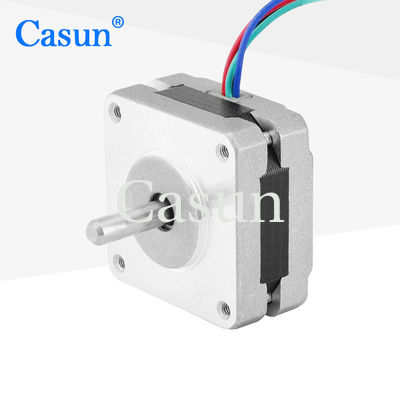

Casun Hybrid Stepper Motor Nema16 39x39x20mm 100mN.M For Automation Equipment
Casun Hybrid Stepper Motor Nema16 39x39x20mm 100mN.M For Automation Equipment
Casun Hybrid Stepper Motor Nema16 39x39x20mm 100mN.M For Automation Equipment
Casun Hybrid Stepper Motor Nema16 39x39x20mm 100mN.M For Automation Equipment

Casun Hybrid Stepper Motor Nema16 39x39x20mm 100mN.M For Automation Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 39SHD0001-20

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.38-$4.38

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Casun Hybrid Stepper Motor

,

Nema16 Hybrid Stepper Motor

,

100mN.M Hybrid Stepper Motor

Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.48A
Motor Length:
25mm
Shaft:
Round Shaft 30mm Length
Voltage:
12v
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
0.48A
Motor Length:
25mm
Shaft:
Round Shaft 30mm Length
Voltage:
12v
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Casun hybrid stepper motor nema16 39x39x20mm 100mN.m for automation equipment



The Nema16 stepper motor you described has the following specifications:

Step angle: 1.8 degrees per step
Motor size: 39 x 20mm
Rated current: 0.48A
Holding torque: 100mN.m (14.2 oz-in)
Weight: 0.12kg (4.2 oz)



Motor Specifications



Step Angel



1.8 °

Fram Size



39mm

Number of Phase



2 Phase

Rated Current



0.48A

Holding Torque



100mN.m

Resistance



25ohm

Inductance



25mH

Rotor Inertia



11 g-cm²

Motor weight



0.12kg

Number of leads



4

Connection



Bipolar





Appearance

Casun Hybrid Stepper Motor Nema16 39x39x20mm 100mN.M For Automation Equipment 0

Dimensions

Casun Hybrid Stepper Motor Nema16 39x39x20mm 100mN.M For Automation Equipment 1



Torque Curves



















Download









If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes

Step angle: The step angle can be customized to meet your specific requirements. For example, a motor with a smaller step angle (e.g., 0.9 degrees) will provide finer control of motion.

Motor size: The size of the motor can be adjusted to fit your specific application. A larger motor may provide more torque, while a smaller motor may be more compact and lightweight.

Rated current: The rated current can be customized based on your specific application requirements. A higher rated current will provide more torque, but may also generate more heat.

Holding torque: The holding torque can be customized based on your specific application requirements. A higher holding torque will allow the motor to hold a larger load.

Connector type: The connector type can be customized to match your specific application requirements. For example, you may need a motor with an aviation connector or a specific type of wiring.

Shaft type: The shaft type can be customized based on your specific application requirements. For example, you may need a motor with a longer or shorter shaft, or a motor with a different type of shaft (e.g., D-shaft or round shaft).

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
