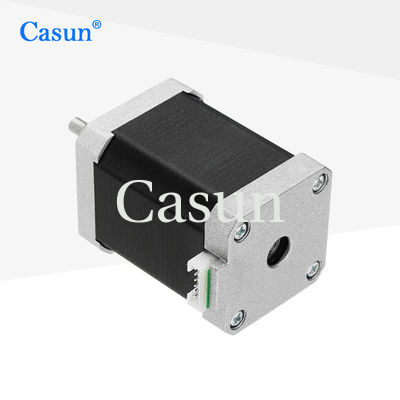

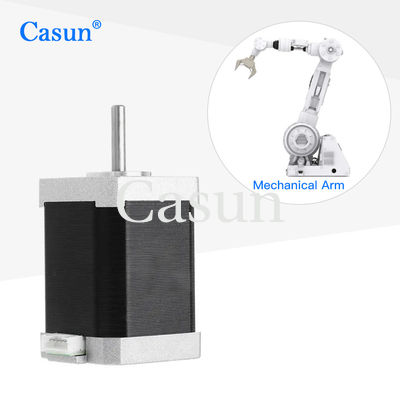

0.6A Hybrid Step Motor 650mN.M 60x60x45 NEMA 24 Stepper Motor For Automation Machine

Stepper motor NEMA 24 680mN.m 60x60x45 hybrid step motor for Automation machine

The Nema24 60MMX60MM Hybrid Open Loop Stepper Motor is a type of stepper motor commonly used in various industrial and automation applications. Here are some key features of this motor:

Nema24: Nema stands for National Electrical Manufacturers Association, and the number 24 refers to the size of the motor. Nema24 is a standard size for stepper motors, and it means that the faceplate of the motor is 2.4 inches (60mm) square.

Hybrid: The Nema24 60MMX60MM motor is a hybrid stepper motor, which means it combines the features of both permanent magnet and variable reluctance motors. Hybrid stepper motors offer high torque, high precision, and good speed control.

Open loop: The motor is designed to operate in an open-loop system, meaning that it does not rely on feedback from sensors or encoders to control its position. This makes it a simpler and less expensive option compared to closed-loop systems.

Step angle: The Nema24 60MMX60MM motor has a step angle of 1.8 degrees per step, which means that it requires 200 steps to complete a full rotation of 360 degrees.

Features:

• Bipolar or unipolar versions available

• Hybrid stepper construction

• Available in single or double shaft versions

• CE and RoHS approved

• Customizations on request

Motor Specifications

Operating Specifications

Motor

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Torque Curves

Submodels

Download

We have the ability to customize motor features such as shafts, winding parameters, installation dimensions, lead wires, and connectors can help to ensure that the motor is a perfect fit for the customer's application. This can lead to improved efficiency, increased reliability, and reduced downtime.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Please click the "Get  a quote" button below to tell us your requirements.
