Nema 34 86x86mm CNC Kit 4 Axis Open Loop Stepper Motor 12N.M For CNC Machine

Nema 34 86x86mm CNC Kit 4 Axis Open Loop Stepper Motor 12N.M For CNC Machine

4 Axis Open Loop Stepper Motor

12N.M Open Loop Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

86SHD4505-37B

Contact Us

Request A Quote
Product Details
Step Angel:
1.8°
Holding Torque:
12000mN.m
Current:
5A
Motor Length:
149mm
Shaft:
37mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$99.8-$323
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

Nema 34 CNC kit 4 axis open loop stepper motor 12N.m step motor for CNC Machine

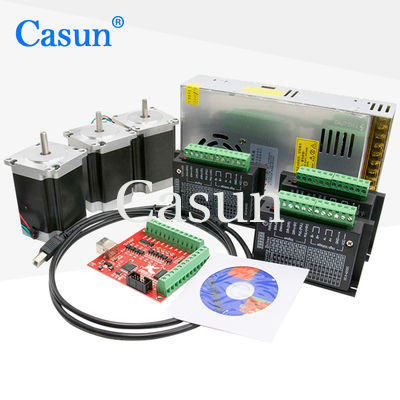

NEMA 34 12N.m Opening Loop Stepper Motor kit 4 motor+4 Driver+4 Power supply+1 mach3



A typical NEMA34 CNC kit may include the following components:


  1. NEMA34 Stepper Motors: These are the main motors used to control the movement of the CNC machine axes. NEMA34 motors are larger and more powerful, suitable for applications that require higher torque.


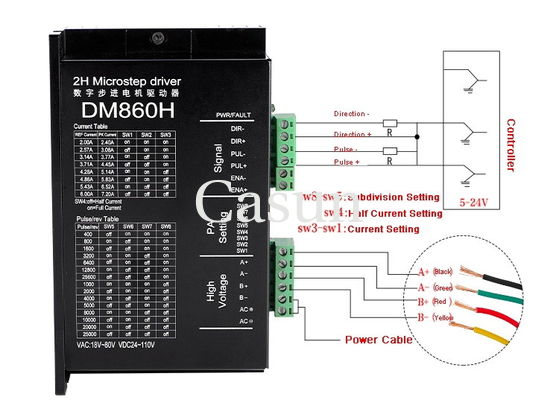

  2. Motor Drivers: These are electronic devices that control the operation of the stepper motors. They receive signals from the CNC controller and provide the necessary current and power to the motors for precise movement.


  3. Power Supply: A power supply unit is included to provide the required electrical power for the stepper motors and motor drivers.


  4. CNC Controller: This is the brain of the CNC machine, responsible for interpreting G-code commands and sending signals to the motor drivers to control the movement of the machine.


  5. Wiring and Connectors: The kit may also include the necessary wiring harnesses, connectors, and cables to connect the various components of the CNC system.


  6. Mounting Brackets: Depending on the specific kit, there may be mounting brackets or hardware included to attach the motors and other components to the CNC machine's frame.

Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Established in China for 12 years and has served more than 800 customers.

  • Professional research and development manufacturing

Appearance

Nema 34 86x86mm CNC Kit 4 Axis Open Loop Stepper Motor 12N.M For CNC Machine 0

Dimensions

Nema 34 86x86mm CNC Kit 4 Axis Open Loop Stepper Motor 12N.M For CNC Machine 1

Motor Specifications



Step Angel

1.8 °

Fram Size

86mm

Number of Phase

2 Phase

Rated Current

5 A

Holding Torque

12N.m

Resistance

1.1ohm

Inductance

7.5 mH

Rotor Inertia

3600 g-cm²

Motor weight

5.5 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves

Nema 34 86x86mm CNC Kit 4 Axis Open Loop Stepper Motor 12N.M For CNC Machine 2







Submodels

Model Holding
Torque
Rated
Current
Resistance
per phase
Inductance
per phase
Detent
torque
Rotor
inertia
Lead
wire
Motor
length
mN.m A Ω mH mN.m g.cm² No. mm
60SHD4201 650 0.6 15 20 50 280 4 45
60SHD4401 1500 2.8 1 3.3 70 450 4 56
60SHD4601 3200 4.2 0.75 3.7 120 580 4 86
60SHD6602 2500 3 1.55 3.7 120 580 4



























Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

Nema 34 86x86mm CNC Kit 4 Axis Open Loop Stepper Motor 12N.M For CNC Machine 3 Nema 34 86x86mm CNC Kit 4 Axis Open Loop Stepper Motor 12N.M For CNC Machine 4 Nema 34 86x86mm CNC Kit 4 Axis Open Loop Stepper Motor 12N.M For CNC Machine 5 Nema 34 86x86mm CNC Kit 4 Axis Open Loop Stepper Motor 12N.M For CNC Machine 6



Please click the "Get a quote" button below to tell us your requirements.






Send your inquiry directly to us
