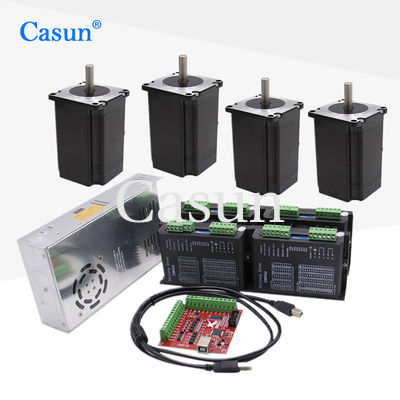

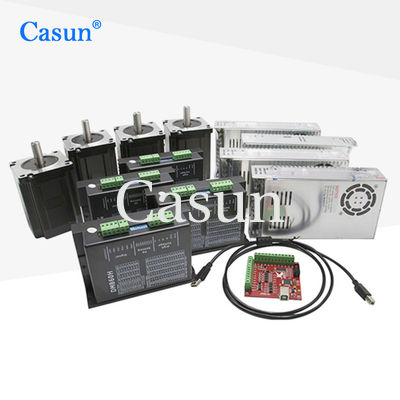

Nema 23 CNC Kits 4 Axis 12N.M Stepper Motor Driver Power Supply Mach3 For CNC Machine

Nema 23 CNC Kits 4 Axis 12N.M Stepper Motor Driver Power Supply Mach3 For CNC Machine

Brand Name:	Casun
Model Number:	57SHD4934-34B
MOQ:	1PC
Price:	$49-$160
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

3N.m

Current:

Motor Length:

100mm

Shaft:

34mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

12N.M Stepper Motor Driver

4 Axis Stepper Motor Driver

CNC Machine Nema 23 Stepper Motor

Product Description

Nema 23 CNC Kits 4 Axis 12N.M Stepper Motor Driver Power Supply Mach3 For CNC Machine

Product Overview

A typical NEMA23 3N.m CNC kit includes a NEMA23 stepper motor with a holding torque of 3N.m. The NEMA23 stepper motor is widely used in CNC machines due to its compatibility with various motion control systems and its ability to provide precise motion control.

The holding torque of 3N.m indicates the motor's ability to maintain a stationary position when powered, resisting external forces. This torque specification is crucial for determining the motor's suitability for specific CNC applications, as it affects the motor's capacity to handle cutting forces and maintain operational stability.

Key Features

High torque and high precision
Ideal for high-tech industry and electronic industry equipment
Available in single or double shaft versions
Established in China for 12 years with over 800 customers served
Professional research and development manufacturing

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	57mm
Number of Phase	2 Phase
Rated Current	5 A
Holding Torque	3N.m
Resistance	2.8Ω
Inductance	7.5 mH
Rotor Inertia	650 g-cm²
Motor Weight	1.3 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle: 1.8° - The angular distance covered by the motor's rotor for each step.

Maximum Temperature: 80°C - Maximum safe operating temperature without performance degradation.

Ambient Temperature: -20°C to 50°C - Effective operating temperature range.

Storage Temperature: -20°C to 100°C - Safe storage temperature range.

Torque Curves

Submodels

Model	Holding Torque (mN.m)	Rated Current (A)	Resistance per phase (Ω)	Inductance per phase (mH)	Detent torque (mN.m)	Rotor inertia (g.cm²)	Lead wire (No.)	Motor length (mm)
60SHD4201	650	0.6	15	20	50	280	4	45
60SHD4401	1500	2.8	1	3.3	70	450	4	56
60SHD4601	3200	4.2	0.75	3.7	120	580	4	86
60SHD6602	2500	3	1.55	3.7	120	580	4	-

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
