products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

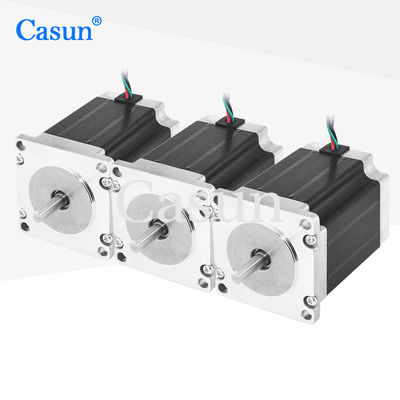

2.5A Hybrid Stepping Motor NEMA 23 76mm Body 1.5N.M For CNC Machine

name

2.5A Hybrid Stepping Motor NEMA 23 76mm Body 1.5N.M For CNC Machine

Brand Name: Casun
Model Number: 57SHD4805-30B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.5N.m
Current:
2.5A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 30mm Length
Shaft Diameter:
8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

2.5A Hybrid Stepping Motor

,

1.5N.M Body Hybrid Stepping Motor

Product Description

Hybrid Stepping Motor NEMA 23 76mm Body 1.5N.M For CNC Machine

The NEMA 23 stepper motor can be precisely controlled through a driver to achieve high-speed and high-precision motion.

3D printers, CNC machine tools, automated production lines, and industrial robots.



Features:

  • High torque and high precision

  • Accept contract manufacturing

  • We are experts in drivetrain solutions

  • Provide "multiple international certifications" for high-tech industry and electronic industry equipment

  • Our engineers will contact you within 48 hours to offer the optimal solution





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.5 A

Holding Torque

15 N.m

Resistance

2.4 ohm

Inductance

9 mH

Rotor Inertia

460 g-cm²

Motor weight1

1 kg

Number of leads

4

Connection

Bipolar

Appearance

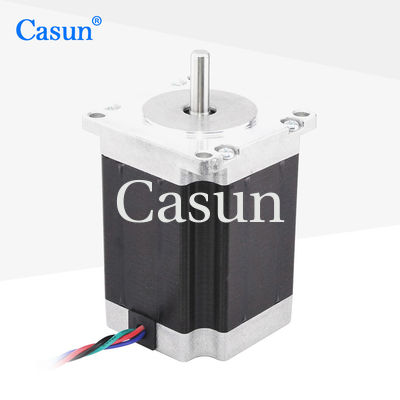

2.5A Hybrid Stepping Motor NEMA 23 76mm Body 1.5N.M For CNC Machine 0

Dimensions

2.5A Hybrid Stepping Motor NEMA 23 76mm Body 1.5N.M For CNC Machine 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

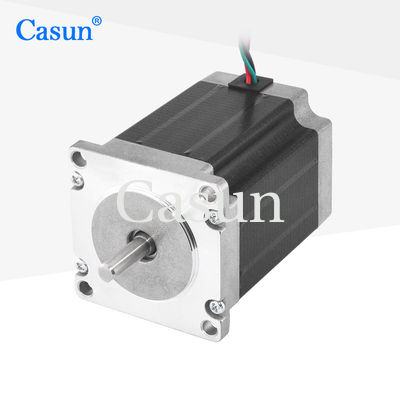

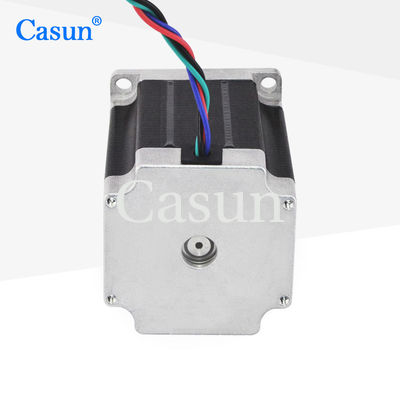

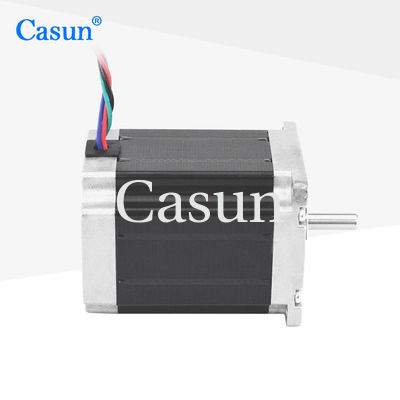

2.5A Hybrid Stepping Motor NEMA 23 76mm Body 1.5N.M For CNC Machine 2 2.5A Hybrid Stepping Motor NEMA 23 76mm Body 1.5N.M For CNC Machine 3 2.5A Hybrid Stepping Motor NEMA 23 76mm Body 1.5N.M For CNC Machine 4 2.5A Hybrid Stepping Motor NEMA 23 76mm Body 1.5N.M For CNC Machine 5



Please click the "Get a quote" button below to tell us your requirements.
