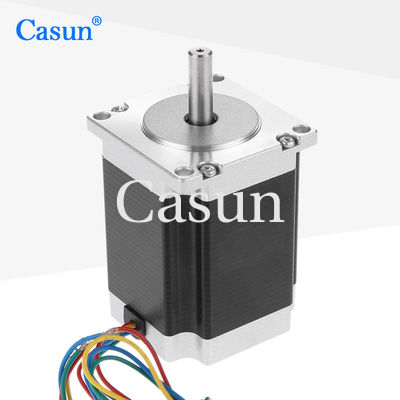

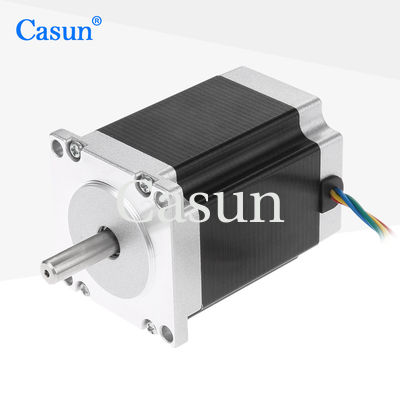

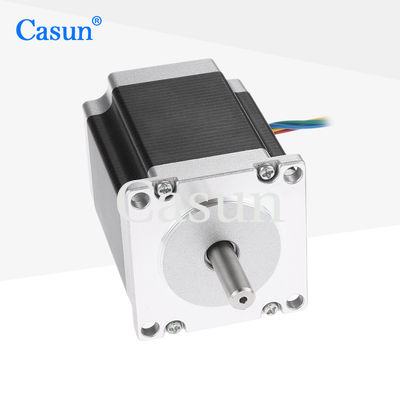

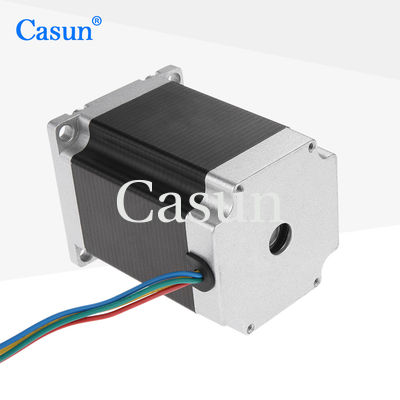

NEMA 23 Hybrid Stepping Motor 76mm Body 1.5N.M For CNC Machine

NEMA 23 Hybrid Stepping Motor 76mm Body 1.5N.M For CNC Machine

Brand Name:	Casun
Model Number:	57SHD4809-24
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

2.0N.m

Current:

2.8A

Motor Length:

76mm

Shaft:

Round Shaft 24mm Length

Shaft Diameter:

8mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

NEMA 23 Hybrid Stepping Motor

Hybrid Stepping Motor 76mm

Hybrid Stepping Motor For CNC Machine

Product Description

NEMA 23 Hybrid Stepping Motor 76mm Body 1.5N.M For CNC Machine

Hybrid Stepping Motor NEMA 23 76mm body 1.5N.m for CNC Machine

The movement is stable and reliable, without any loss of step, ensuring the reliability and stability of the system. Excellent performance in application scenarios that require precise position control, such as automation equipment, robots, CNC machining, etc.

Key Features

High torque and high precision
Each model of our stepper motor is suitable for various applications
We are experts in drivetrain solutions
We are open to different contract manufacturing arrangements
Our engineers will contact you within 48 hours to offer the optimal solution

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	2.8 A
Holding Torque	2 N.m
Resistance	1.5 ohm
Inductance	5.0 mH
Rotor Inertia	460 g-cm²
Motor Weight	1 kg
Number of Leads	4
Connection	Bipolar

Appearance

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6N.m	1.8°	41mm	D Shaft-21mm	1.0A
57SHD4415-21B	1.1N.m	1.8°	54mm	D Shaft-21mm	3.0A
57SHD4816-21B	2.0N.m	1.8°	76mm	D Shaft-21mm	3.0A
57SHD4913-21B	2.5N.m	1.8°	83mm	D Shaft-21mm	3.0A
57SHD4934-20B	3.0N.m	1.8°	100mm	D Shaft-20mm	3.0A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft
